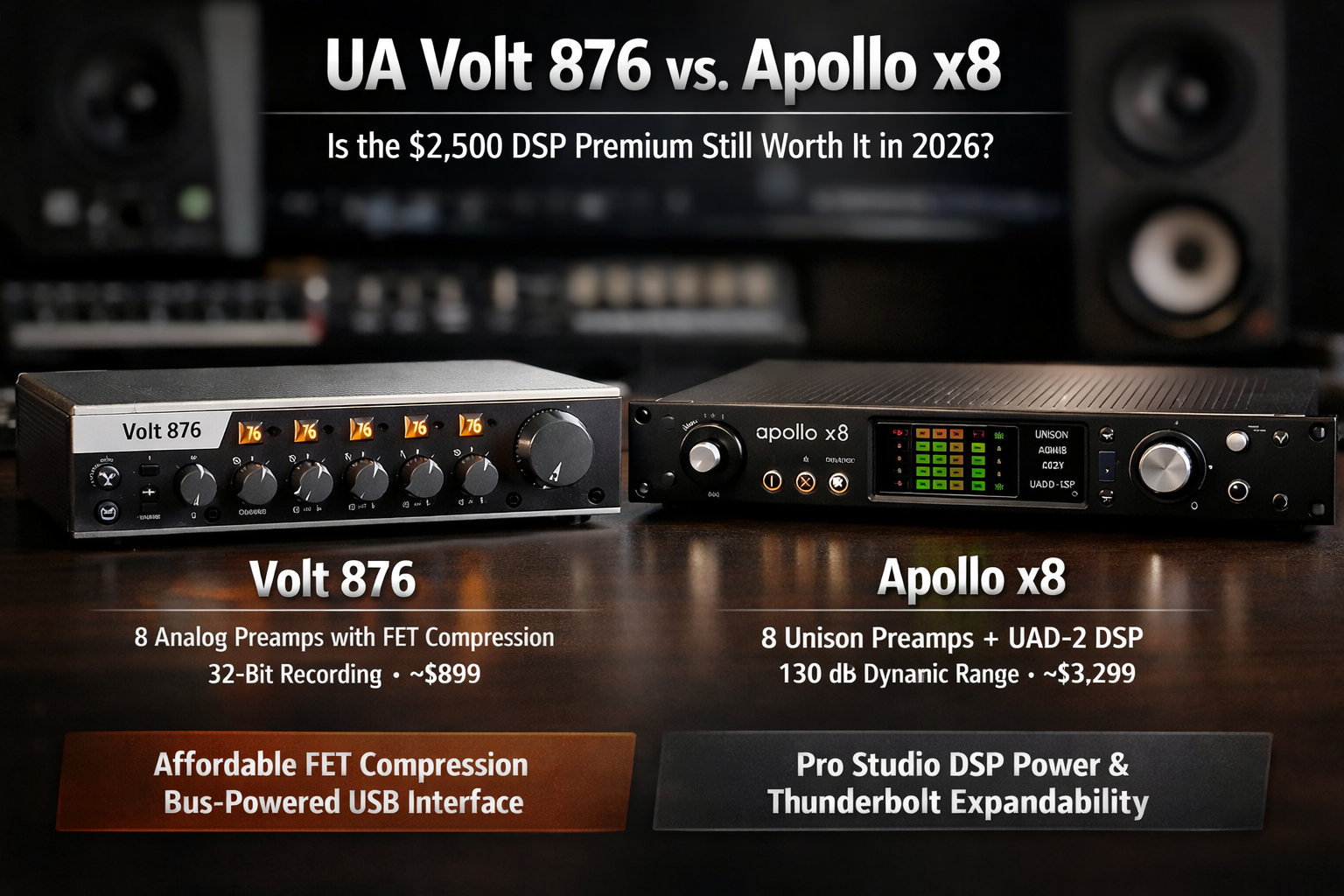

UA Volt 876 vs. Apollo x8: Is the $2,500 DSP Premium Still Worth It in 2026?
The UA Volt 876 delivers 8 preamps with analog FET compression and 32-bit recording for under $1,000. The Universal Audio Apollo x8 provides 8 Unison preamps, 130 dB dynamic range, and onboard UAD-2 DSP processing for approximately $3,299. Whether the Apollo x8 justifies that $2,300 gap depends entirely on how you work.
The 8-Preamp Showdown: Price vs. Real-World Performance
The "32-Bit" Marketing Trap: Why the Volt 876 Numbers Aren't Everything
Universal Audio markets the Volt 876 as a 32-bit interface. That figure is accurate but incomplete. The practical recording quality of any audio interface depends on dynamic range, converter architecture, and analog circuit noise. Bit depth alone does not determine it.
Fixed-Point vs. Floating-Point: Why You Can Still Clip the Volt 876
The Volt 876 uses 32-bit fixed-point analog-to-digital conversion. Fixed-point 32-bit extends the numeric range at the bottom of the signal floor, reducing the consequences of recording too quietly. It does not prevent clipping at the top. Set the Volt 876's preamp gain too high and the input stage clips before the converter engages.
The Apollo x8 uses 24-bit conversion engineered to deliver 130 dB of dynamic range. That headroom advantage comes from preamp design and converter quality, not a higher bit-depth number on the box.
Dynamic Range Realities: 130 dB (Apollo x8 Gen 2) vs. 119 dB (Volt 876)
The Apollo x8 Gen 2 achieves a measured dynamic range of 130 dB on its analog inputs. The Volt 876 measures approximately 119 dB. That 11 dB gap is audible in high-SPL tracking environments: drum rooms, brass ensembles, and loud guitar amplifiers. The Volt 876's noise floor compresses into the signal during peaks in these scenarios.
For home studio vocal recording at moderate SPLs, the Volt 876's 119 dB dynamic range is sufficient. For commercial tracking rooms handling wide-dynamic-range sources, the Apollo x8's 130 dB is the professional standard.
The Conversion Gap: Why "Elite-Class" Components Outperform High Bit-Depths
The Apollo x8 uses conversion components that match the measured performance of standalone two-channel converters costing $1,000 or more per channel. The Volt 876 uses conversion components appropriate for its price point.
Bit depth describes the resolution of the converter's output. Converter component quality determines the accuracy of what is being captured. A high-quality 24-bit converter outperforms a low-quality 32-bit converter in every measurable category: dynamic range, total harmonic distortion (THD), and signal-to-noise ratio (SNR).
Hardware Tone: Analog "76" Compression vs. Unison Preamps
Tracking with Commitment: The Volt 876's Analog FET Circuitry
The Volt 876 includes a hardware analog compressor modeled on the UA 1176 FET circuit. Engaging 76 Mode applies fast-attack FET compression directly to the input signal before analog-to-digital conversion. The compression is printed to the recorded file. There is no dry signal path when 76 Mode is active.
For engineers who want printed analog tone from a sub-$1,000 bus-powered interface, this is a genuine advantage. No other 8-channel interface at the Volt 876's price point includes hardware analog compression on every input channel.
The Unison Advantage: Why the Apollo x8 Wins for Variable Impedance Matching
The Apollo x8 Unison system physically reconfigures the input impedance of each preamp to match the plugin being emulated. Loading the UAD Neve 1073 sets hardware input impedance to approximately 1.2 kOhm. Loading the UAD API 512c sets it to approximately 2 kOhm. Loading the UAD 610-B sets it to approximately 10 kOhm.
A Shure SM7B tracked through an Apollo x8 running the UAD 610-B plugin sounds different from the same microphone on a fixed-impedance interface using the same plugin as a DAW insert. The Apollo x8 changes the actual electrical relationship between the microphone and the preamp. A fixed-impedance interface does not.
The Volt 876 operates at a fixed input impedance of approximately 2.8 kOhm across all sources. The 76 Mode circuit is genuine analog hardware, but the Volt 876 cannot replicate variable impedance behavior.
Legacy Workflow: Can the Volt's Vintage Mode Replace the UAD 610-B Plugin?
The Volt 876's Vintage Mode adds second-order harmonic saturation to the preamp signal. It produces coloration characteristic of transformer-coupled designs but does not emulate any specific piece of outboard gear and does not interact with the source microphone at the impedance level.
The UAD 610-B plugin running on an Apollo x8 models the input transformer behavior, tube gain stage, and output transformer saturation of the UA 610 console channel. It uses Unison impedance matching to interact with the source microphone at the hardware level. Vintage Mode and the UAD 610-B produce audibly different results on matched sources.
Professional Ecosystem: Connectivity, DSP, and Expansion
Thunderbolt 3 vs. USB: Latency and Stability in 2026
Bandwidth Limits: Why USB 2.0 Still Powers the Volt 876
The Volt 876 connects via USB-C but operates on USB 2.0 protocol at 480 Mbps maximum bandwidth. At 96 kHz with 8 channels of simultaneous input and output, the Volt 876 uses approximately 60% of available USB 2.0 bandwidth, leaving limited headroom for buffer reduction.
On macOS Tahoe (macOS 15), the Volt 876 achieves stable round-trip latency of approximately 6–8 ms at a 128-sample buffer. On Windows 11 (24H2), the Volt 876 requires UA Connect driver 1.4.2 or later to avoid DPC latency spikes above 500 µs during simultaneous 8-channel record and playback.
The Apollo x8 connects via Thunderbolt 3 at 40 Gbps. A single Thunderbolt 3 bus supports up to four Apollo units simultaneously, delivering up to 64 channels of shared I/O with pooled DSP processing across all connected units.
Multi-Unit Cascading: Why Pro Studios Need Apollo's Thunderbolt Ecosystem
Universal Audio's Console application manages routing, DSP allocation, and monitor control across all Thunderbolt-connected Apollo units from a single interface. An Apollo x8 running as the primary unit can add an Apollo x8p for 8 additional Unison preamps, an Apollo x16D for 16 channels of ADAT-connected expansion, and an Apollo TB3 for remote room I/O. All units share clock and DSP resources through a single Thunderbolt chain.
The Volt 876 does not support multi-unit cascading. Two Volt 876 units connected to the same computer appear as separate, independent audio devices that cannot share a clock or combine channels without third-party software.
The Hybrid Play: Using the Volt 876 as an ADAT Expander for Your Apollo
The Volt 876 includes an ADAT optical output that transmits all 8 preamp channels at up to 48 kHz over a single TOSLINK cable. This makes the Volt 876 the most cost-effective way to add 8 hardware-compressed preamps to an existing Apollo system.
Connect the Volt 876's ADAT output to the Apollo x8's ADAT input. Set the Apollo x8 as master clock and the Volt 876 as the external clock source. All 8 Volt 876 channels appear inside UA Console as ADAT inputs 1 through 8, routable to any DAW input or monitor path.
In this configuration, an Apollo x8 owner gains 8 additional analog inputs with hardware FET compression for the price of a Volt 876. UAD plugins can then be applied to the ADAT returns inside Console for zero-latency DSP processing on the Volt 876 channels. This is the most overlooked use case for the Volt 876 in 2026.
DSP and Monitoring: Where the Apollo x8 Has No Competition
DSP for Tracking: Zero-Latency Vocal Chains Without CPU Buffering
The Apollo x8 includes two SHARC DSP chips that run UAD-2 plugins independently of the host CPU. A vocal chain including the UAD 610-B preamp emulation, the UAD 1176 compressor, and the UAD Neve 33609 bus compressor runs at zero latency through onboard hardware DSP regardless of the DAW buffer size.
The Volt 876 has no onboard DSP. Its zero-latency monitoring path sends the dry input signal directly to the outputs. Adding plugins to the monitoring path requires host CPU processing and incurs the latency of the current DAW buffer.
Immersive Audio and Monitor Correction
The Apollo x8 provides 10 balanced line outputs. Outputs 1 through 8 support independent channel assignment for 7.1 or 7.1.2 immersive monitoring. The Apollo x8 also supports Sonarworks SoundID Reference as a native UAD plugin running on onboard DSP, applying monitor correction at zero host CPU cost.
The Volt 876 provides two balanced monitor outputs and supports stereo monitoring only. It cannot drive a Dolby Atmos speaker system without an external multichannel DA converter. For engineers working in stereo, this is not a limitation. For anyone whose 2026 workflow includes Atmos deliverables, the Apollo x8's output count is the hard minimum.
Final Verdict: Choosing the Right Universal Audio Interface
Who Should Buy the UA Volt 876?
The Volt 876 is the right call in three situations. Mobile producers and podcasters who need 8 preamps with hardware compression in a bus-powered USB form factor will find nothing competitive at the price. Engineers running native plugin workflows on Apple M3 or M4 hardware, who have no use for UAD DSP, do not need to pay the Apollo premium. Existing Apollo owners looking to expand to 16 channels of analog input via ADAT are getting the best value the Volt 876 offers.
The Volt 876's 76 Mode FET compression is a hardware differentiator with no direct competitor under $1,000.
Who Should Invest in the Apollo x8?
The Apollo x8 earns its price in three scenarios. Vocal-focused studios where Unison impedance matching changes the recorded result on every session. Commercial facilities that need Thunderbolt cascading for 32-plus channels of shared I/O and DSP. Atmos engineers who need 10 discrete outputs, zero-latency hardware DSP monitoring, and Sonarworks correction without host CPU overhead.
The combination of 130 dB dynamic range, variable impedance Unison preamps, and zero-latency DSP processing is not available on any interface below $2,500. If those three things matter to your workflow, the Apollo x8 is the correct tool.
