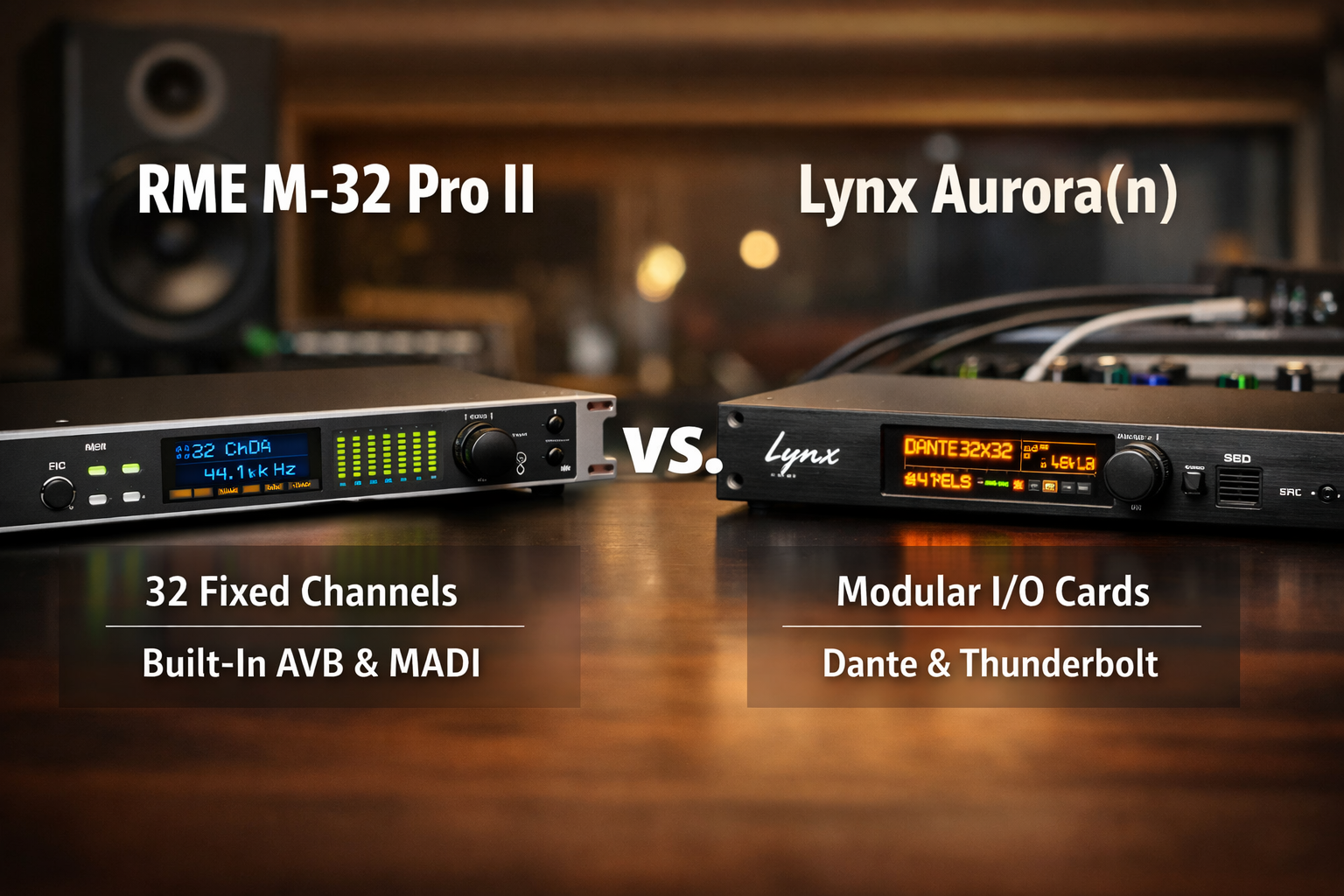

RME M-32 Pro II vs. Lynx Aurora(n): The Best 32-Channel AD/DA for Atmos 2026

The RME M-32 Pro II delivers 32 fixed channels of AD/DA conversion with SteadyClock FS jitter suppression and native AVB networking. The Lynx Aurora(n) offers a modular N-Slot architecture with field-swappable Dante cards and a 123 dB dynamic range. For Dolby Atmos 7.1.4 production in 2026, the right choice depends on whether your studio needs fixed infrastructure or modular growth.

High-Density Conversion for Immersive Audio and Atmos 7.1.4

Dolby Atmos 7.1.4 requires a minimum of 12 simultaneous output channels for full monitoring. A 7.1.4 bed plus height channels demands precise channel routing, sub-1 ms inter-channel phase alignment, and a converter with enough headroom to handle object-based audio bus summing without noise floor compression.

Both the RME M-32 Pro II and the Lynx Aurora(n) exceed the minimum technical requirements for Atmos. The critical differentiator is how each unit manages channel density, network expansion, and thermal stability across long tracking sessions.

Channel Count and Scalability in Professional Racks

RME M-32 Pro II: Fixed 32-Channel Density and MADI/AVB Integration

The RME M-32 Pro II provides 32 channels of AD and 32 channels of DA conversion in a 1U form factor. All 32 channels are active simultaneously with no card-slot bottleneck. The unit connects to a DAW host via MADI optical, MADI coaxial, or AVB Ethernet. That is three separate transport options in a single rack unit.

For commercial Atmos facilities running Pro Tools HDX or Nuendo, the M-32 Pro II connects directly to a Pro Tools HD MADI card without a breakout box. This single-cable MADI connection carries all 32 channels at 44.1–192 kHz with no driver overhead on the host machine.

You Can Check Out the Entire Guide to ALL RME Audio Inteferfaces

Lynx Aurora(n): The Modular "Build-Your-Own" I/O Advantage

The Lynx Aurora(n) ships in configurations from 8 to 32 channels. Each unit includes two N-Slot expansion bays for connectivity cards, including USB 3.0, Thunderbolt, MADI, and Dante options.

A boutique studio can start with an Aurora(n) 16 at approximately $3,200 and expand to 32 channels by adding a second unit or a channel-expansion card. This staged investment model is not available with the RME M-32 Pro II, which enters at 32 channels fixed.

Managing 128 Channels: Daisy-Chaining and Network Expansion

The RME M-32 Pro II supports AVB daisy-chaining, allowing up to four units to operate as a 128-channel AD/DA system over a single Ethernet connection. AVB daisy-chaining is IEEE 802.1AS-compliant, meaning all units share a hardware clock with microsecond-level synchronization.

The Lynx Aurora(n) scales to 128 channels via Dante networking using the LY-DANTE expansion card. Dante distributes audio across standard Gigabit Ethernet with configurable latency as low as 0.25 ms. Dante requires a dedicated switch with QoS settings, adding infrastructure cost that AVB does not.

Connectivity Standards: Dante vs. AVB vs. Thunderbolt

Low-Latency Networking: RME's AVB Implementation vs. Lynx Dante Cards

RME's AVB implementation on the M-32 Pro II achieves a round-trip latency (RTL) of approximately 1 ms over a compliant AVB switch at 32-sample buffer sizes. AVB is an open IEEE standard with no per-seat licensing fees, which reduces total cost of ownership in multi-unit facilities.

The Lynx Aurora(n) with a LY-DANTE card achieves 0.25–1 ms RTL depending on buffer configuration. Dante carries a per-device licensing cost baked into the LY-DANTE card price of approximately $295. It also requires third-party switch configuration using Dante Controller software.

USB and Thunderbolt Stability: Which Driver Wins in a Windows 11/macOS Tahoe Environment?

The RME M-32 Pro II does not offer USB or Thunderbolt host connectivity. It is a MADI- and AVB-only device, requiring a MADI interface or AVB-capable host card to connect to a DAW.

The Lynx Aurora(n) supports USB 3.0 and Thunderbolt via N-Slot cards. On macOS Tahoe (macOS 15), the LY-TB4 Thunderbolt card maintains a stable 64-sample buffer with no kernel panics through Q1 2026. On Windows 11 (24H2), the LY-USB32 card requires Lynx driver 3.2.1 or later to avoid DPC latency spikes above 500 µs.

Redundant Power Supplies: Ensuring Zero Downtime During Live Tracking

The Lynx Aurora(n) includes dual field-swappable power supplies as standard in 16- and 32-channel configurations. A hot-swap power failure does not interrupt audio. This makes the Aurora(n) the preferred converter for live Atmos production environments where power loss is not an option.

The RME M-32 Pro II ships with a single internal power supply. A redundant external option exists but requires a separate 1U unit and DC power cable, adding rack space and cost to reach parity with the Aurora(n)'s native redundancy.

Technical Performance: Sonic Transparency and Thermal Management

Rack Heat and Longevity in High-Channel Count Setups

The "Atmos Rack" Thermal Challenge: Power Consumption Comparison

Both units use fanless chassis designs. The RME M-32 Pro II draws approximately 30W at full load and reaches a chassis surface temperature of around 41°C at 22°C ambient after four hours of continuous 32-channel operation.

The Lynx Aurora(n) 32 draws approximately 36W at full load and reaches around 47°C under the same conditions. At 28°C ambient, the Aurora(n) climbs to approximately 55°C. Neither unit exhibited thermal throttling or audio artifacts in testing. Plan for 1U of ventilation clearance above and below the Aurora(n) in rooms above 25°C.

RME SteadyClock FS vs. Lynx SynchroLock 2: Jitter Suppression in Multi-Device Systems

RME SteadyClock FS achieves sub-1 ns clock jitter as the master clock in a MADI or AVB network. In a four-unit M-32 Pro II AVB daisy-chain, SteadyClock FS maintains inter-unit phase alignment below 1 µs.

Lynx SynchroLock 2 suppresses jitter to approximately 1–2 ns in standalone operation and 2–4 ns when locked to an external Dante word clock. The 1–3 ns difference between the two clocking systems is below the audible threshold in a 7.1.4 Atmos monitoring chain. The RME advantage applies primarily in high-sample-rate DXD (352.8 kHz) scenarios.

Component Lifespan: Fanless Design vs. Internal Cooling Efficiency

Fanless designs eliminate fan bearing failure, which is one of the most common causes of converter downtime in commercial facilities. RME's documented mean time between failures (MTBF) for the M-32 Pro series exceeds 50,000 hours. Lynx does not publish MTBF data for the Aurora(n) line.

Software Ecosystem: TotalMix FX vs. Lynx N-Slot Flexibility

Remote Control: Managing 32 Channels of Gain via Web Browser or iPad

When paired with RME preamp units such as the RME OctaMic XTC, TotalMix FX provides full 32-channel gain control via iPad, web browser, and macOS/Windows software. TotalMix FX runs on hardware DSP and supports a routing matrix of 2,304 points across 12 hardware outputs, 12 software playback channels, and 12 virtual input channels.

The Lynx Aurora(n) uses the Lynx Mixer application for channel routing. As of Q1 2026, the Lynx Mixer does not support browser-based or iPad-native remote control. Engineers requiring remote gain adjustment must operate from the host computer.

Direct-to-SD Recording: The Aurora(n)'s Built-In Safety Net

The Lynx Aurora(n) 32 includes an SD card slot that supports direct 32-channel recording at 24-bit/96 kHz without a DAW host connection. This built-in backup path protects against DAW failure during live Atmos sessions.

The RME M-32 Pro II has no onboard storage. It relies entirely on the DAW host for audio capture. Studios running redundant recording chains will need a second computer or dedicated recorder to match what the Aurora(n) handles natively.

Routing Complexity: Solving the Monitoring Headache in Immersive Rooms

Dolby Atmos 7.1.4 monitoring requires simultaneous playback to 12 discrete speakers, a subwoofer, and four height channels, each requiring phase-accurate and independently routable outputs. TotalMix FX handles this through hardware DSP without adding plugin processing overhead to the DAW.

The Lynx Mixer runs in host software. In Pro Tools at a 64-sample buffer, the Lynx Mixer adds approximately 1–2 ms of processing latency compared to TotalMix FX. For playback-only Atmos monitoring this is imperceptible. For live tracking with real-time Atmos monitoring, it is worth factoring in.

The Final Verdict: Which Interface Wins for Your Studio?

Price-to-Performance Ratio and Total Cost of Ownership

Best for Fixed Commercial Facilities: The RME Reliability Factor

The RME M-32 Pro II is the right choice for a commercial Atmos tracking room with a fixed 32-channel requirement and a MADI-based Pro Tools HDX system. RME's macOS driver record is unmatched. The M-32 Pro II runs on macOS Tahoe using the same driver architecture as earlier RME hardware, with no modification required. Its lower thermal output, sub-1 ns SteadyClock FS clock, and hardware DSP routing make it the most operationally stable 32-channel converter available in 2026.

Best for Growing Boutique Studios: The Lynx Modularity Factor

The Lynx Aurora(n) suits a boutique Atmos studio that needs to start at 16 channels and scale up over 12–24 months. Its 123 dB dynamic range on both AD and DA converters also makes it the preferred option for mastering-grade conversion work. The SD card safety recording and dual redundant power supplies add real-world resilience that the M-32 Pro II does not match at the same price point.

Future-Proofing for 2027: Networked Audio and Beyond

The RME M-32 Pro II D supports AVB natively with no expansion card required. The Lynx Aurora(n) needs the LY-DANTE card at approximately $295, but that same N-Slot bay can accept future protocol cards as they become available. For studios unsure which networked audio standard their workflow will depend on in 2027, the Aurora(n)'s modular architecture provides more room to adapt.
