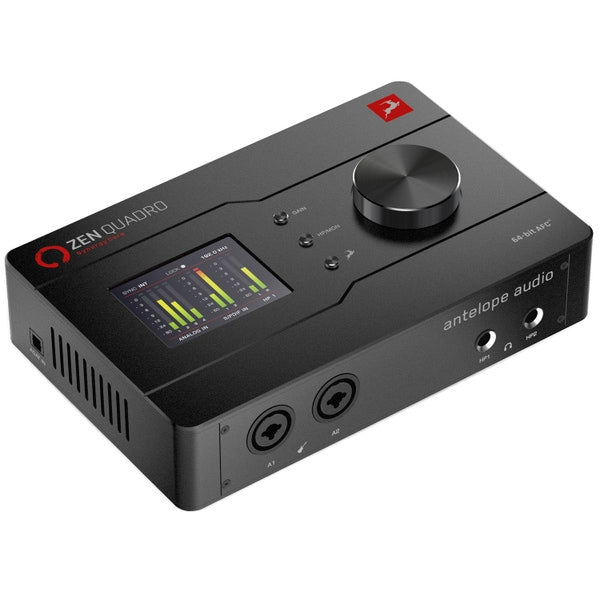

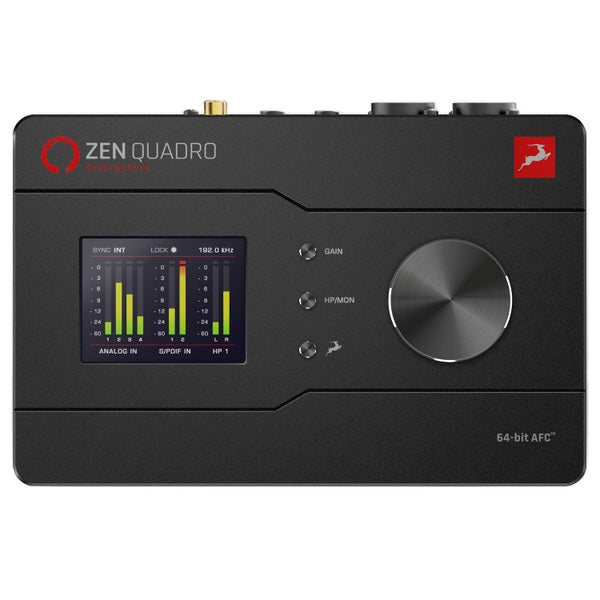

Antelope Audio Zen Quadro Synergy Core Includes:

• In-the-Box Content
  • Zen Quadro Synergy Core
  • USB-C cable
  • USB-C to USB-A adapter
  • Get started guide
• Included Real-Time Effects
  • 22 Guitar Amps & Cabs (incl. Bluelux 1x12, Tube Guitar Amp)
  • 5 Compressors & Limiters (incl. Stay-Levin, FET-A76, VCA160)
  • 4 Equalizers (incl. VEQ-1A, VMEQ-5)
  • 2 Preamps (Gyraf Gyratec IX, BA-31)
  • 2 Special Processing Effects (Expander, Noise Gate)
  • 1 Reverb Effect (Auraverb)
  • 1 Guitar Tuner (A-Tuner)

Antelope Audio Zen Quadro Synergy Core Features:

• Conversion & Clocking
  • Class-leading AD/DA conversion with up to 130dB of headroom.
  • Recording, mixing, and playback at up to 24-bit/192kHz.
  • Proprietary 64-bit AFC™ (Acoustically Focused Clocking) technology & Jitter Management
  • algorithm delivering increased sound width, separation, and detail.
• Connectivity
  • 4 × Discrete 6-transistor preamps with 75dB of gain for pristine recordings. All work as
  • microphone/line and two are also Hi-Z inputs, on combo XLR jacks, and supply 48V of phantom power.
  • 2 x monitor outs and 2 x line outputs via TRS
  • Two stereo headphone outputs with separate gain control and mix
  • Two independent USB-C ports (OTG) for simultaneous playback & recording
  • ADAT Input (up to 8 ch) and S/PDIF I/O (2 ch)
  • DC-coupled inputs and outputs for controlling modular synths with control voltage (CV)
• Workflow-enhancing features
  • Direct monitoring with Synergy Core effects, processed in real-time with near-zero latency.
  • Easy routing - select audio sources per channel, for each monitoring mix. Also available through the color display.
  • Simultaneous playback and recording with two computers or computer + mobile device.
• Flexible loopback options for streaming.
  • Customizable presets with signal routing, level adjustments, mixer, and effects settings.
  • Customizable monitoring mixes with adjustable levels, panning, and reverb.
  • Class-compliant, no driver required on macOS and iOS.
  • Standalone operation – simply connect to a phone charger and use it without being connected to a computer.
  • Remote control of software features from a separate computer connected to the same network.
• Real-time effects processing
  • Included collection of 37 Synergy Core effects modeled after classic and rare analog outboard gear.
  • Synergy Core - proprietary FPGA+DSP platform for real-time effects processing allows up to 48
  • effects loaded simultaneously with near-zero latency.
  • Mic Modeling Engine allows pairing with the Edge microphones for real-time use of vintage
  • microphone emulations.

Antelope Audio Zen Quadro Synergy Core Specifications:

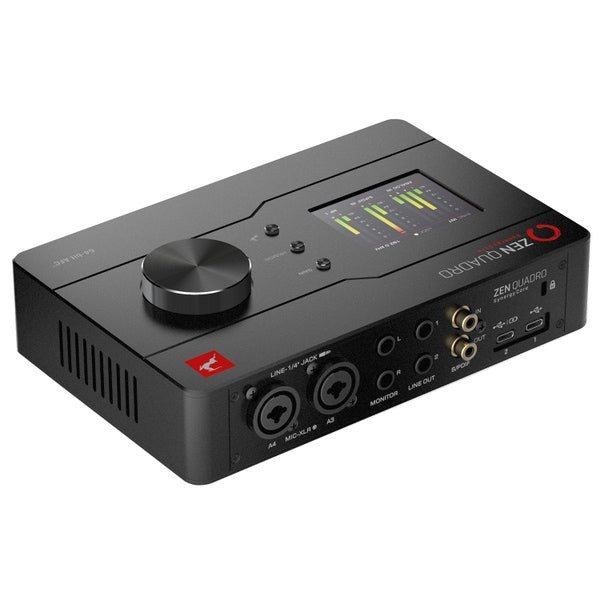

• Analog Inputs
  • 2 x Mic / Line Inputs (DC-Coupled)
  • 2 x Mic / Line / Hi-Z Inputs (DC-Coupled)
• Analog Outputs
  • 2 x Monitor Out on TRS jacks, +20 dBu max (DC-Coupled)
  • 2 x Line Out on TRS jacks, +20 dBu max (DC-Coupled)
  • 2 x Stereo Headphone Outputs
• Mic Preamp
  • EIN: -128 dBu (A-weighted)
  • Max input: +20 dBu
  • Max Gain: 75 dB
  • A/D Converter
  • Dynamic Range: 122 dB
  • THD + N: -116 dB
  • D/A Monitor Converter
  • Dynamic Range: 130 dB
  • THD + N: -115 dB
  • D/A Converter (Line Out)
  • Dynamic Range: 130 dB
  • THD + N: -115 dB
• DIGITAL
  • Digital Inputs
    • 1 x ADAT input (up to 8ch @ 44.1/48 kHz)
    • 1 x S/PDIF (2ch.)
  • Digital Outputs
  • 1 x S/PDIF (2ch.)
• USB 1
  • USB 2.0 Type-C connector
  • 16 channels of playback and recording, 24-bit / 192kHz
  • Compatible with Windows and macOS
• USB 2
  • USB 2.0 Type-C connector
  • 2 channels of playback and recording, 24-bit / 192kHz
  • Supports reverse charging for mobile devices
  • Compatible with Windows, macOS, Android* and iOS* (USB-C) devices
  • *Compatibility depends on the mobile device’s power delivery and specifications.
• Clocking System
  • 4th Generation Acoustically Focused Clocking
  • 64-bit DDS
  • Sample Rates (kHz): 32, 44.1, 48, 88.2, 96, 176.4, 192
• OTHER
  • Operating Temperature: 0-50°C, 32-122°F
  • Weight (Approx): 0.9 kg/ 1.98 lbs
  • Dimensions - Device (Approx)
  • Width: 210 mm / 8.2”
  • Height: 58 mm / 2.3”
  • Depth: 136 mm /5.3”
  • Dimensions – Box
  • Width: 287 mm / 11.3”
  • Height: 92 mm / 3.6”
  • Depth: 187 mm /7.4”
