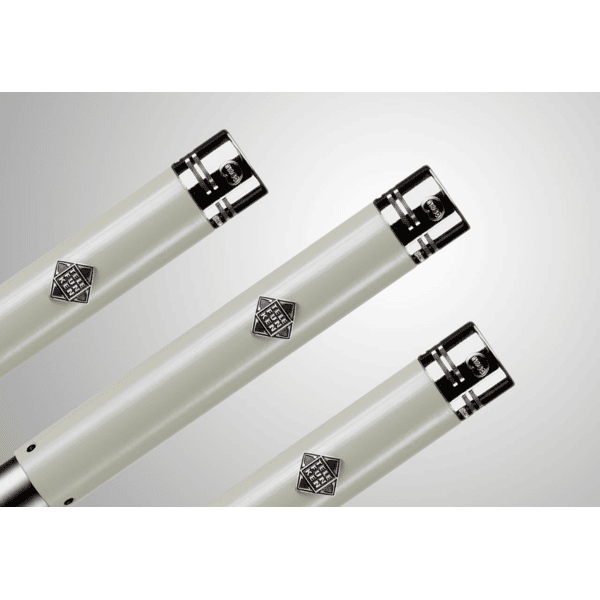

Telefunken m260 tri mono master set capsules front view

Telefunken ELA M260 Tri-Mono Master Set

$4,295.00
Shipping Icon
Shipping & Returns
  • We deliver all US orders in 6–10 business days
  • Free cancellations
  • Returns accepted within 30 days (unused items)
Tax Icon
No Sales Tax
No sales tax on your order (except GA*)
Why Shop Icon
Why Shop With Us
  • Authorized Retailer for RME, Antelope & more
  • Expert support at 844-873-2323

Notify me when back in stock

Description

ELA M260 Overview

  Shipping Update:
This item is currently on a 4-week lead time. Once your order is placed, it will ship in approximately 4 weeks. We coordinate directly with the manufacturer to ensure timely delivery and exceptional quality. ELA M260 Tri mono set

Telefunken ELA M 260 Tri-Mono Tube Microphone Master Set

The Telefunken ELA M 260 Tri-Mono Master Set delivers a premium, ready-to-record solution for engineers who demand absolute control and fidelity in stereo and surround microphone techniques. Whether you’re tracking a classical ensemble, scoring to picture, or capturing immersive ambient sound, this kit offers everything needed to configure a full Decca Tree or Tri-Mono array—with all the warmth and precision of tube circuitry.

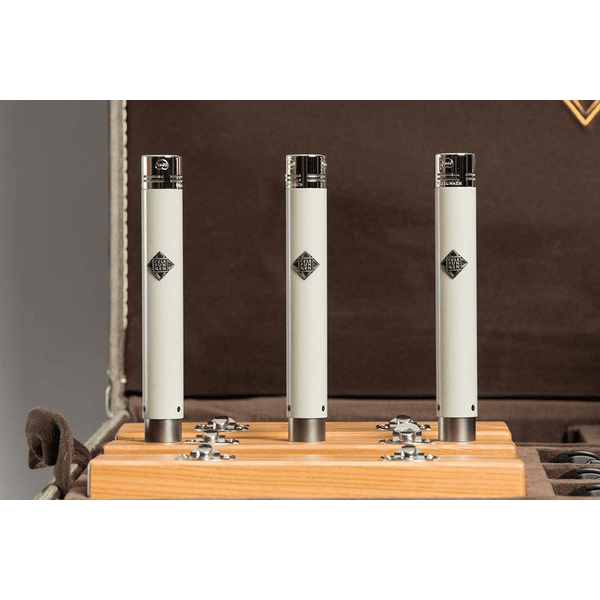

 Telefunken ELA M260 Trimono Set

A Modern Take on a Tube Classic

At the core of each ELA M 260 microphone is a carefully selected NOS Philips 5840W vacuum tube paired with Telefunken’s T60 transformer—delivering rich harmonic detail, quick transient response, and an incredibly low noise floor. Each mic features a wide frequency response (20 Hz – 20 kHz), high SPL handling (135 dB), and a sensitivity rating of 16.5 mV/Pa, making them as capable with delicate strings as they are with bombastic orchestral swells. This Tri-Mono configuration includes three matched ELA M 260 microphones, factory calibrated to ensure sonic consistency across all channels. A custom 3-channel external power supply with slow-start heater circuitry ensures both safe power-up and long tube life, even in the most demanding studio environments.

 Telefunken M260 Tri Mono master set view

Full Capsule Flexibility for Any Stereo Technique

Each mic comes with all three interchangeable TK6x series capsules—TK60 (cardioid), TK61 (omnidirectional), and TK62 (hypercardioid)—allowing you to dial in precise pickup patterns based on the application. Whether you're recreating a traditional Decca Tree with omnis or experimenting with hypercardioid spacing in a diffuse room, this kit gives you the tools to tailor your sound from the source. To further optimize directional response, the kit includes 30mm and 50mm diffuse field spheres, which attach to the omni capsules and enhance front-axis presence while reducing rear reflections. These spheres are ideal for regaining focus and clarity in large, reverberant spaces.

Telefunken ELA M 260 Matched Trio Specifications

Specification Details
Type Vacuum Tube Condenser
Polar Pattern Cardioid, Omni, Hypercardioid (via interchangeable capsules)
Capsules TK60, TK61, TK62 – 15mm edge-terminated diaphragm
Tube NOS Philips 5840W
Transformer TELEFUNKEN T60
Frequency Range 20 Hz – 20 kHz ±3 dB
Sensitivity 16.5 mV/Pa ±1 dB
Max SPL 135 dB (1% THD)
THD @ 1kHz @ 1 Pa < 0.15%
Output Impedance 200 Ω
Self Noise 11 dBA
S/N Ratio 83 dBA
Dimensions 140 mm L × 20 mm Dia
Weight 116 g
Power Supply External 3-channel NG-style PSU (included)

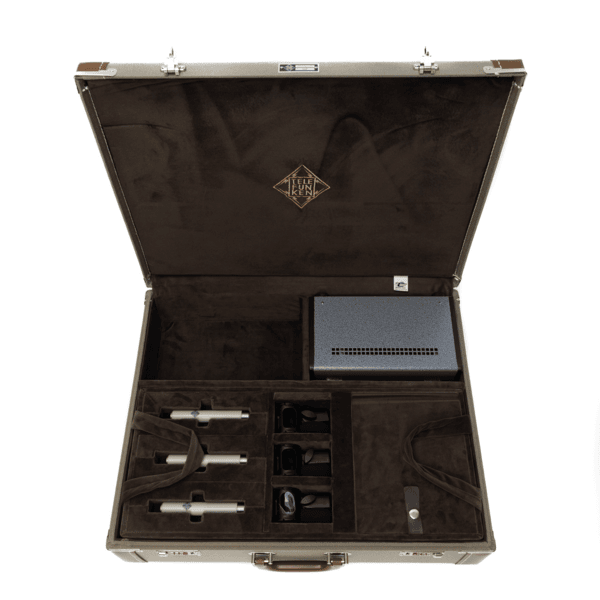

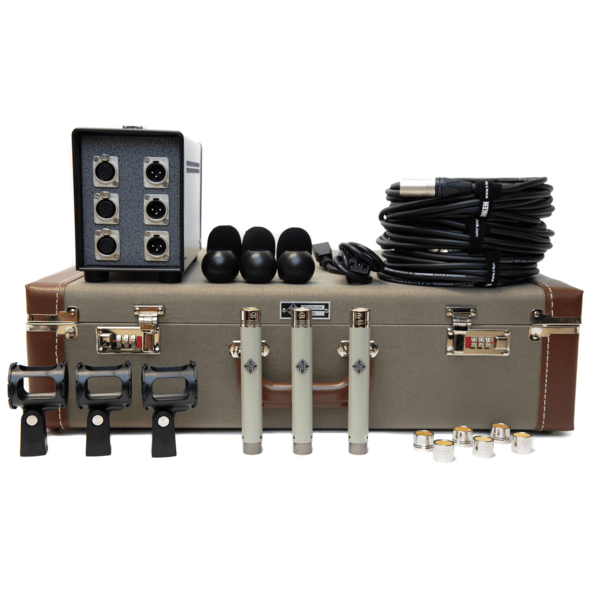

What’s Included in the Box

  • 3 × Telefunken ELA M 260 Tube Microphones (matched)
  • 1 × 3-Channel NG-Style External Power Supply
  • 3 × TK60 Cardioid Capsules (matched)
  • 3 × TK61 Omnidirectional Capsules (matched)
  • 3 × TK62 Hypercardioid Capsules (matched)
  • 3 × 30mm Diffuse Field Spheres
  • 3 × 50mm Diffuse Field Spheres
  • 3 × AccuSound TX-7 10m Tube Mic Cables (RA XLR)
  • 3 × M761 Elastic Shock Mounts
  • 3 × Mic Clips
  • 1 × Wooden Storage and Transport Case
