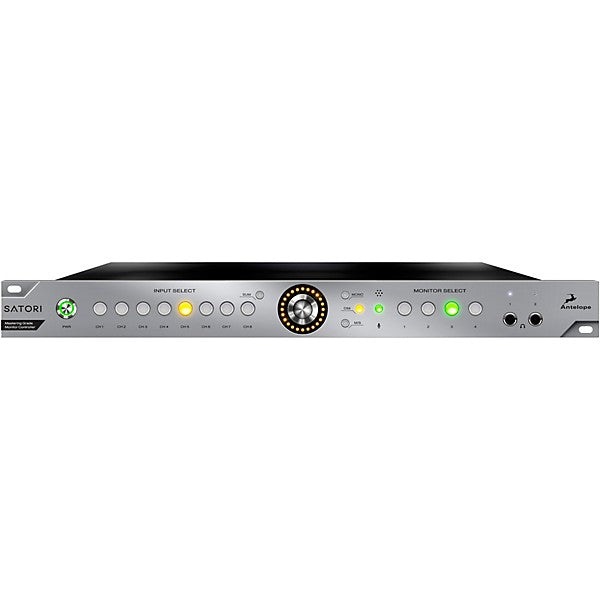

Introducing the Antelope Audio Satori + R4S, a high-end monitoring controller with remote control capabilities designed to elevate your recording, mixing, and mastering workflow. Engineered for critical audio monitoring, Satori features mastering-grade transparency in its audio converters, ensuring accurate reproduction in both analog and digital domains.

At its core, Satori incorporates an 8-channel analog mixer with circuitry inspired by classic analog consoles, enhancing depth, dynamics, and character in your digital productions. It serves as a versatile monitor controller with extensive input and output options, including balanced XLR, 1/4" TRS, and 25-pin D-sub connections. Four independently powered headphone outputs offer personalized mixes for multiple users, enhancing collaboration in studio environments.

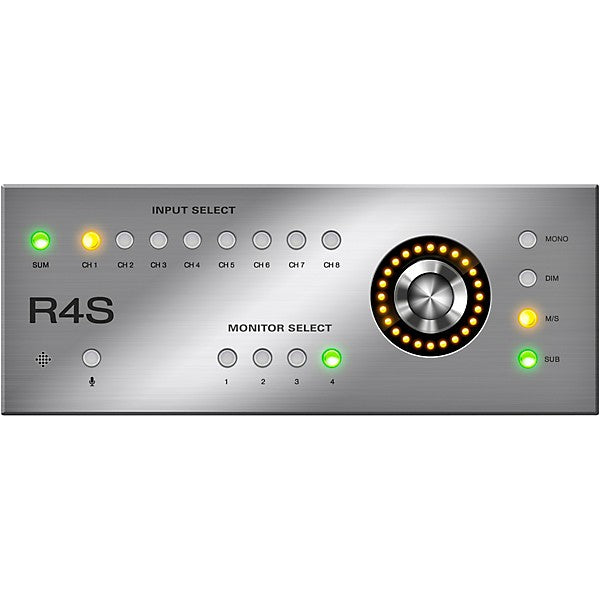

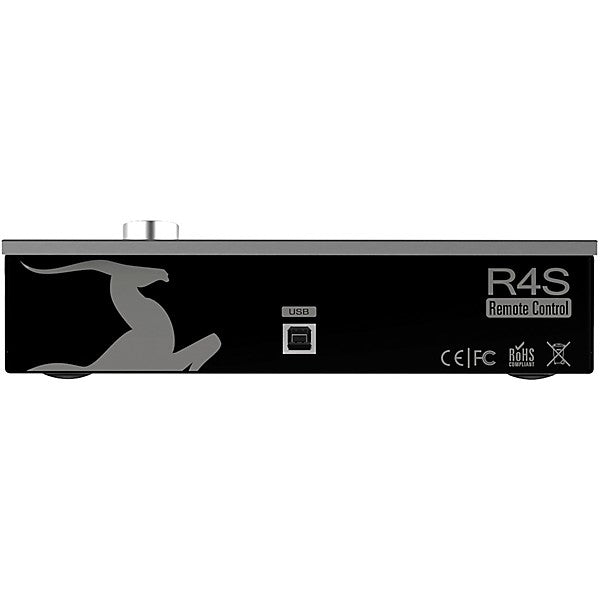

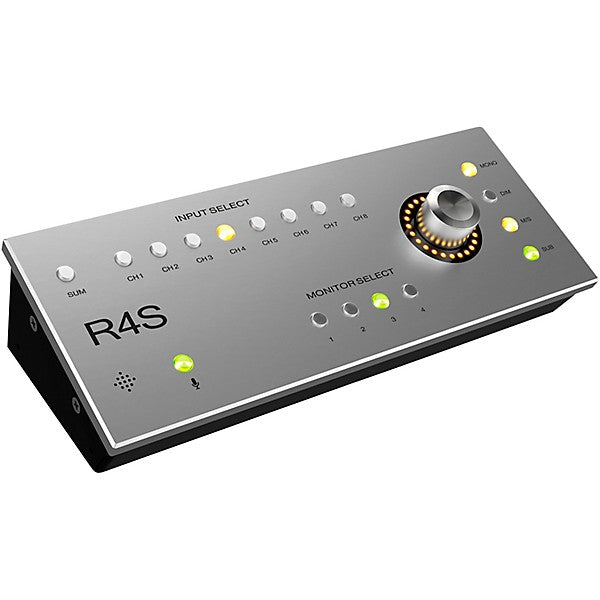

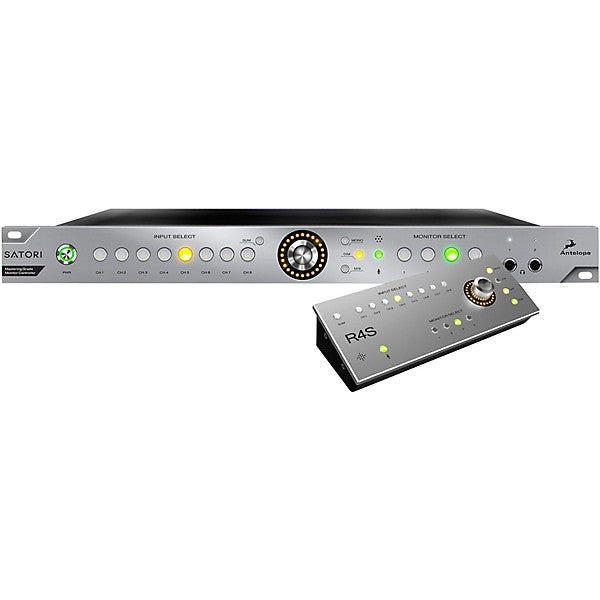

The Satori + R4S configuration includes the R4S remote control, providing convenient access to essential controls replicated from the unit's front panel. Additionally, a free mobile app for iOS and Android devices offers wireless control, ensuring flexibility and convenience wherever you work.

Experience precision monitoring and enhanced control with the Antelope Audio Satori + R4S, designed to meet the demands of professional audio production with unparalleled clarity and versatility.

Antelope Audio SATORI+R4S Features:

• 8-channel analog mixer reaching the sound of legendary mixing consoles
• Mastering-grade quality via optimized PCB layout & power supply technology
• 8 stereo ins, 4 stereo outs, XLR, 1/4” TRS, D-Sub and subwoofer output in 1U
• Multiple personalized mixes for musicians and engineers
• An innovative technology retaining the excellent sonic performance of relay attenuators
• User-friendly desktop software plus iOS and Android mobile apps

Antelope Audio SATORI+R4S Specifications:

• Analog Inputs
  • 4 x Stereo Pair Line Level Inputs. Ch1 on XLR & Ch2-4 on TRS
  • 4 x Stereo Line Level Inputs on D-Sub 25
  • 1 x Talkback Mic Preamp on TRS
• Analog Outputs
  • 4 x Stereo Line Level Outputs on D-Sub 25
  • 4 x Stereo Pair Monitor Outputs, Mon1 on XLR and Mon2-4 on TRS
  • 1 x Line Level Stereo Sum Output on TRS
  • 1 x LFE Output on TRS
  • 4 x Headphone Outputs (two on the rear and two on the front) on TRS
• USB I/O: USB 2.0 Hi-Speed, Type B For use with the software control panel
• Dynamic Range: 132dB
• THD + N: 127dB
• Operating temperature: 0-50° C / 32-122° F
• Weight: ~2kg / 4,4lb approx.
• Dimensions
  • Width: 483 mm / 19” /Rack/
  • Height: 44 mm(1U) / 1,75”
  • Depth: 220 mm / 8,66”
• Power Supply: AC Universal input ~95-245 V
• Power Consumption: 25 Watts Max.
