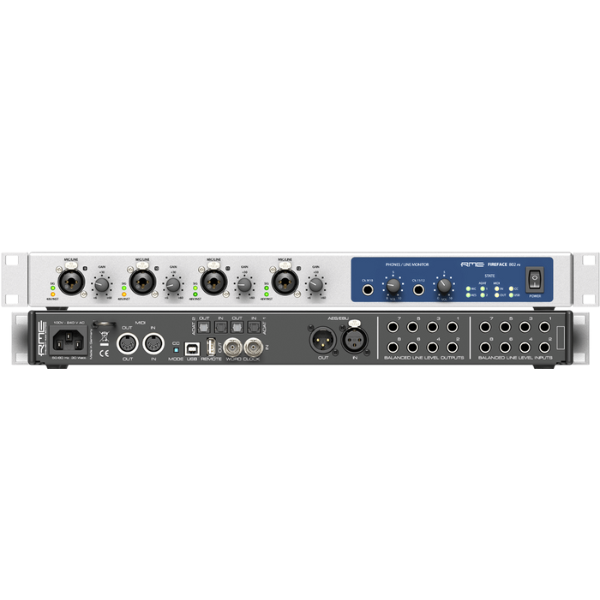

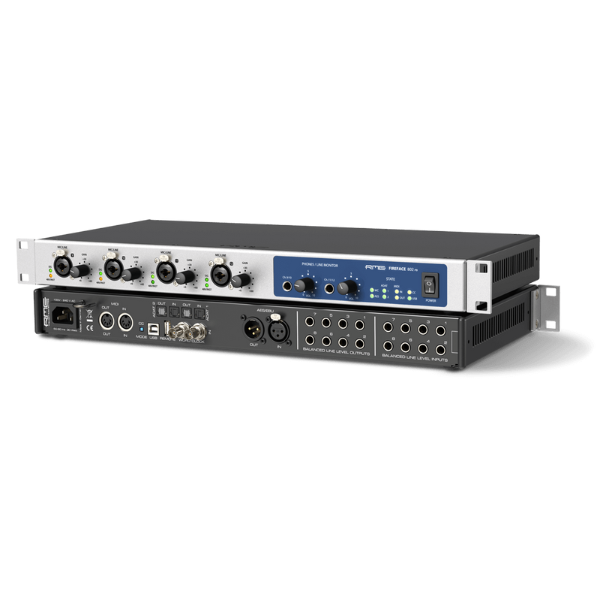

RME Fireface 802 FS – 60-Channel USB Audio Interface with SteadyClock FS & TotalMix FX

The RME Fireface 802 FS is a powerful 60-channel audio interface designed to meet the demands of high-end studios and live sound professionals. With 30 inputs and 30 outputs, this interface delivers uncompromising sound quality, ultra-stable performance, and exceptional routing flexibility—whether you're tracking a full band or running a complex live show.

At its core is SteadyClock FS, RME’s reference-class jitter suppression technology, ensuring crystal-clear AD/DA conversion at sample rates up to 192 kHz. Equipped with four front-panel mic/line/Hi-Z inputs, ultra-low latency drivers, and full USB 2.0 compatibility (plus legacy FireWire support), the Fireface 802 FS integrates effortlessly into any production environment.

Harness the power of TotalMix FX, RME’s DSP-powered mixer and effects engine, offering zero-latency monitoring, EQ, dynamics, and time-based effects across all channels. With dual high-power headphone outputs, standalone operation, MIDI I/O, and ADAT/AES digital connectivity, this interface is a complete solution for demanding multi-channel workflows.

Key Features:

• 60-channel USB audio interface (30 in / 30 out)

• SteadyClock FS for ultra-low jitter and accurate digital clocking

• USB 2.0 and FireWire connectivity for wide system compatibility

• TotalMix FX DSP with EQ, reverb, delay, dynamics, and zero-latency monitoring

• 192 kHz AD/DA conversion with reference-grade sonic transparency

• Standalone mode with memory recall for preset configurations

• DIGICheck DSP tools for precision metering and audio analysis

Analog I/O:

• 4 x XLR-1/4" TRS combo inputs (mic/line/Hi-Z) with +48V phantom power

• 8 x 1/4" TRS line inputs (balanced)

• 8 x 1/4" TRS line outputs (balanced)

• 2 x 1/4" headphone outputs (independent, high-current for low-impedance cans)

Digital I/O:

• 2 x ADAT I/O (16 channels in/out at 44.1/48 kHz)

• 1 x AES/EBU (XLR) stereo I/O

• ADAT ports support S/PDIF format for added flexibility

• Word Clock I/O (BNC) for sync with external digital systems

• MIDI I/O (5-pin DIN) with 16 channels and low-latency throughput

System Compatibility:

• Class-compliant USB 2.0 interface

• Supports Windows and macOS

• Works with iOS via USB adapters (in class-compliant mode)

• Includes universal power supply for worldwide use

Whether you’re mixing a large multitrack session, setting up a complex monitoring system, or capturing pristine takes in the studio, the Fireface 802 FS delivers professional-grade performance, stability, and sonic integrity—true to RME’s reputation for uncompromising audio tools.
