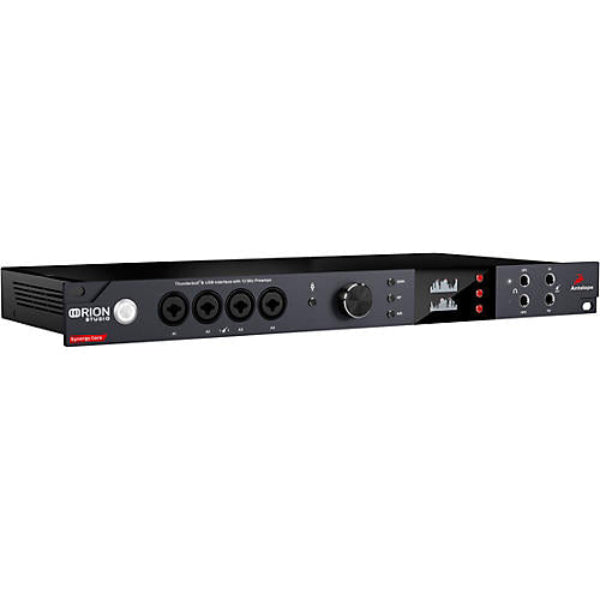

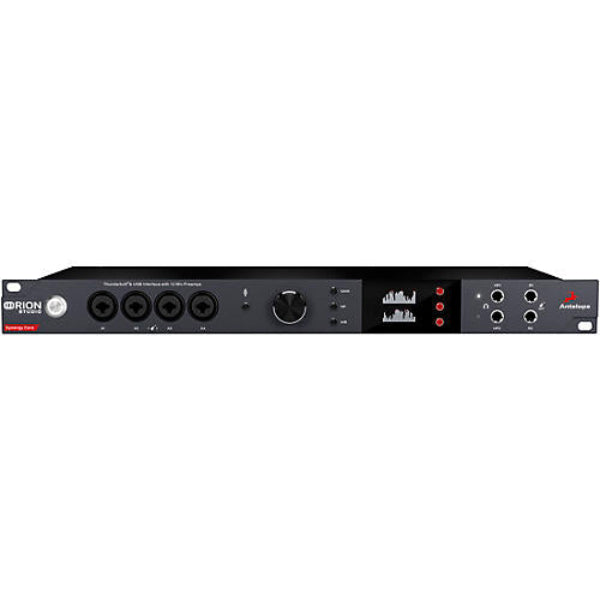

The Antelope Audio Orion Studio Synergy Core is a cutting-edge Thunderbolt 3 and USB interface with 12 all-discrete preamps and unparalleled DSP power. With Antelope’s groundbreaking Synergy Core FX and renowned FPGA professing, the Orion Studio Synergy Core is a world-class recording and mixing studio in a compact, rack mountable solution.FEATURES:
Rack-mount Thunderbolt 3 & USB audio interface with 12 Discrete mic preamps
Synergy Core processing platform with 2 FPGA + 6 DSP chips
2 pairs of monitor outputs run concurrently or in A/B mode with 130 dB dynamic range
30 simultaneous inputs x 22 simultaneous outputs
DC-coupled I/O for CV control of analog modular synths
Hand-built in Europe to be your pro studio's centerpiece for years to come

Antelope Audio Orion Studio Synergy Core Includes:

• Orion Studio Synergy Core Thunderbolt™ 3 and USB AD/DA Interface with 12 Discrete Mic Pres
• Quick Start Guide
• Warranty Card
• 1 In-Line DC Power supply
• 1 USB cable
• Included Software
  • Gyraf Gyratec IX (Tube Mic Preamp)
  • VCA160 (Compressor / Limiter)
  • Stay-Levin (Tube Compression Amplifier)
  • FET-A76 (FET Compressor)
  • X903 (Compressor / Limiter)
  • PowerFFC (Compressor)
  • VEQ-HLF (Passive High/Low Filter)
  • BA-31 (Vintage Mic Preamp)
  • ALT-436C (Tube Compressor Amplifier)
  • FET-A78 (FET Compressor Limiter)
  • SMT-100A (Tube Leveling Amplifier)
  • VEQ-1A (Tube Equalizer)
  • VMEQ-5 (Tube Mid-Range Equalizer)
  • BAE-1023 (3-band Vintage EQ)
  • NEU-PEV (Passive Vintage EQ)
  • NEU-W492 (5-band Vintage EQ)
  • NEU-W495 (3-band Vintage Mastering EQ)
  • VEQ-4K BROWN (Legendary Vintage EQ)
  • VEQ-4K ORANGE (Legendary Vintage EQ)
  • VEQ-4K PINK (Legendary Vintage EQ)
  • VEQ-STU 089 (Vintage EQ)
  • VEQ-STU 169 (Vintage EQ)
  • VEQ-STU 900 (Vintage EQ)
  • Clear Q (Parametric EQ)
  • Auraverb (Reverb)
  • Power EX (Expander)
  • Power Gate (Gate)
  • aster De-Esser (De-Esser)
  • Plexi 59 (UK) (Tube Guitar Amp)
  • Bass SuperTube VR (Tube Guitar Amp)
  • Darkface 65 (US) (Tube Guitar Amp)
  • Top30 (UK) Bright (Tube Guitar Amp)
  • Tweed Deluxe (US) (Tube Guitar Amp)
  • Overange 120 (UK) (Tube Guitar Amp)
  • BurnSphere (DE) Lead (Tube Guitar Amp)
  • Marcus II (US) Lead (Tube Guitar Amp)
  • Modern (US) CH3 (Tube Guitar Amp)
  • Rock 75 (UK) (Tube Guitar Amp)
  • Rock 22.10 (UK) (Tube Guitar Amp)
  • Darkface 65 2x12 (Guitar Cabinet)
  • Top30 2x12 (Guitar Cabinet)
  • Modern 4x12 (Guitar Cabinet)
  • Green 2x12 (Guitar Cabinet)
  • Vintage 4x12 (Guitar Cabinet)
  • Green 4x12 (Guitar Cabinet)
  • Caliper 50 1x10 (Guitar Cabinet)
  • Bluelux 1x12 (Guitar Cabinet)
  • Clst 1x12 (Guitar Cabinet)
  • England 4x12 (Guitar Cabinet)
  • Bass Tube 1x15 (Guitar Cabinet)

Antelope Audio Orion Studio Synergy Core Specifications:

• Analog Inputs
  • 8 x Mic / Line Inputs / Direct In
  • 4 x Mic / Line / Hi-Z Inputs / Direct In
• Analog Inserts
  • 2 x Inserts on TRS (inputs 1,2)
• Analog Outputs
  • 2 x Monitor Out on TRS 1/4 Jacks: Can work both simultaneously and in A/B mode
  • 2 x ReAmp Out on TRS 1/4 Jacks
  • 2 x Line Out (16 channels) on DB25, +20 dBu max, impedance balanced
  • 2 x Stereo Headphone Outputs
• D/A Monitor Converter
  • Dynamic Range: 130 dB
  • THD + N: -115 dB
• A/D Converter
  • Dynamic Range: 124 dB
  • THD + N: -112 dB
• D/A Converter
  • Dynamic Range: 128 dB
  • THD + N: -115dB
• Discrete Mic Preamps
  • EIN: -128 dBu
  • Dynamic Range: -121 dB
  • THD: -106 dB
  • Max input: +20 dBu
  • Max Gain: 75 dB
• Digital Inputs
  • 2 x ADAT (up to 16CH)
  • 1 x S/PDIF on RCA
• Digital Outputs
  • 2 x ADAT (up to 16CH)
  • 1 x S/PDIF on RCA
  • USB 2.0 Hi-Speed
  • USB 2.0 Type B connector
  • (up to 24 channels)
  • Thunderbolt™ 3 I/O
  • Thunderbolt™ 3 connector
  • (up to 32 channels)
• Word Clock Input
  • 1 × Input @ 75 Ohms 3Vpp on BNC 32 – 192kHz
• Word Clock Outputs
  • 1 × Outputs @ 75 Ohms 3Vpp on BNC 32 – 192kHz
• Clocking System
  • 4th Generation Acoustically Focused Clocking
  • 64-bit DDS
  • Oven-controlled crystal oscillator
• Clocking Stability
• Clock Aging
  • < 1 ppm per year
• Clock Calibration
• Sample Rates
  • 44.1, 48, 88.2, 96, 176.4, 192 (kHz)
• Operating Temperature
  • 0-50°C, 32-122°F
• Weight
  • 3.1 kg/ 6.83 lbs (Approx.)
• Dimensions (Approx.)
  • Width: 483 mm / 19”
  • Height: 44 mm / 1.7”
  • Depth: 220 mm /8.6”
• Electrical specs
  • DC Universal input: 18V
  • Power Consumption: 25 Watts Max
• System RequirementsWINDOWS
  • PC: Computer with Thunderbolt™ 3 and/or USB ports
  • OS: Windows 10 x64 with the latest updates
  • RAM: 4GB minimum (8GB or more recommended)
  • CPU: Intel Core i3™ or AMD FX and higher
  • MAC
  • Model: Apple Mac 2012 or newer Thunderbolt™ 3 and/or USB ports
  • OS X: macOS 10.12 (Sierra) and higher - Recommended macOS 10.14 (Mojave)
  • Memory: (RAM)4GB minimum (8GB or more recommended)
• Additional Info: Internet connection required for product activation.
