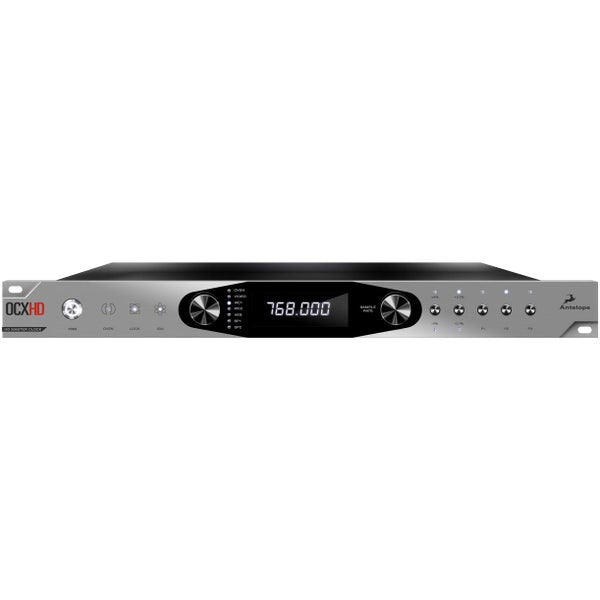

The Antelope Audio OCXHD 768 kHz HD Master Clock is the ultimate solution for mastering, recording, project studios, film scoring, post-production, and live sound environments.

Featuring sample rate support up to 768 kHz, the OCXHD incorporates Antelope’s renowned 4th generation Acoustically Focused Clocking (AFC) jitter management algorithm and an oven-controlled crystal oscillator, ensuring unparalleled precision and stability in audio synchronization.

This master clock offers extensive connectivity options, including 10 configurable pairs of Word Clock Outputs on BNC, four AES/EBU Outputs, and two additional S/PDIF outputs. With this versatile range of connections, the OCXHD stands as the most adaptable audio master clock available, while its proprietary clocking technology guarantees the most musical and reliable audio sync generation on the market.

Elevate your studio setup with the Antelope Audio OCXHD 768 kHz HD Master Clock, setting a new standard in audio synchronization and reliability.

Antelope Audio OCXHD Features:

• 64-bit acoustically focused clocking: Antelope Audiogame-changing 4th gen ACF jitter management algorithm
• 768 kHz clocking: OCX HD can output five differentsample rates
• Greater connectivity: AES/EBU, S/PDIF clocking outs up to 192kHz, video inon BNC and Atomic clock Input

Antelope Audio OCXHD Specifications:

• Sample Rates Generated: 32, 44.1, 48, 88.2, 96, 176.4,192, 352.8, 384, 705.6, 768kHz

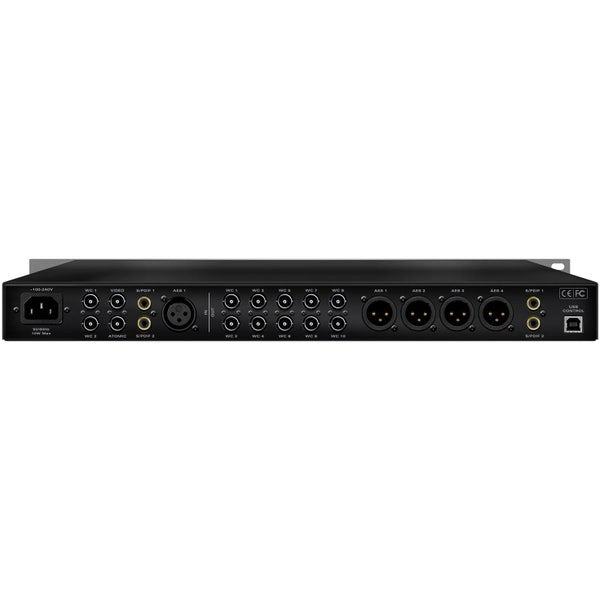

• Master Clock Outputs:
  • 10x Word Clock Outputs up to 768kHz
  • 4x AES/EBU Outputs up to 192kHz
  • 2x S/PDIF Outputs up to 192kHz
• Inputs:
  • 2x Word Clock Inputs up to 768kHz
  • 1x Video Input accepting wide range of SD and HD video signals
  • 1x Atomic Input
  • 2x S/PDIF Inputs up to 192kHz
  • 1x AES/EBU Input up to 192kHz
  • 1x USB Input for control
• Atomic Clock Input: 1 x 10M Atomic Clock Input @ 75Ohms 3Vpp on BNC 44.1 – 384kHz
• Humidity: 30 – 80% RH non-condensing
• Clocking System:
  • 4th Generation Acoustically Focused Clocking
  • 64-bit DDS
  • Oven Controlled Crystal Oscillator
• Clock Calibration: < +/-0.001 ppm
• Clock Stability: < +/- 0.02 ppm, oven controlled at64.5 C/148.1 F
• Clock Aging: < 1 ppm per year
• Atomic Clock Input: 1 x 10M Atomic Clock Input @ 75Ohms 3Vpp on BNC
• Sample Rates (kHz): 32, 44.1, 48, 88.2, 96, 176.4,192, 352.8, 384
• Operating Temperature: 32°-122°F (0° – 50°C)
• Weight: 5.84 lb (2.65 kg)
• Dimensions (WxDxH): 19" x 9.05" x 1.75" (482.6 ? 230 ?44 mm)
• Power Supply: AC Universal Input ~95-245V, 20 Watts Max
