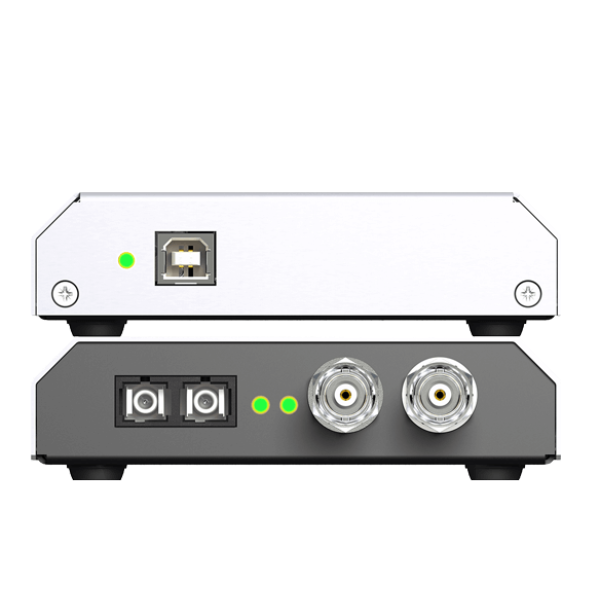

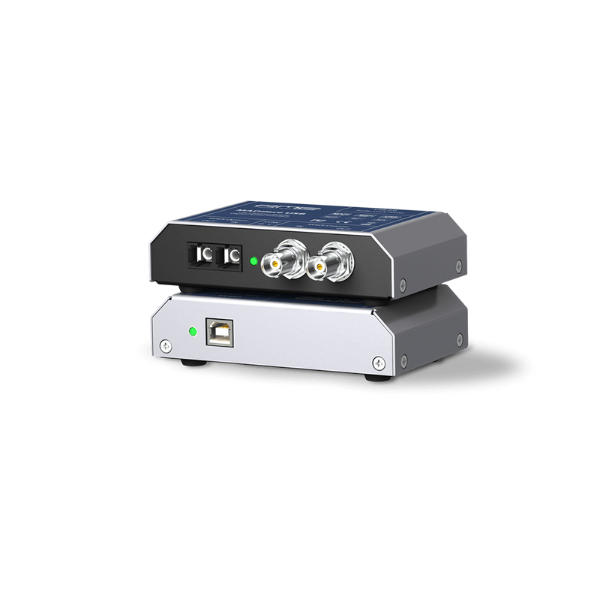

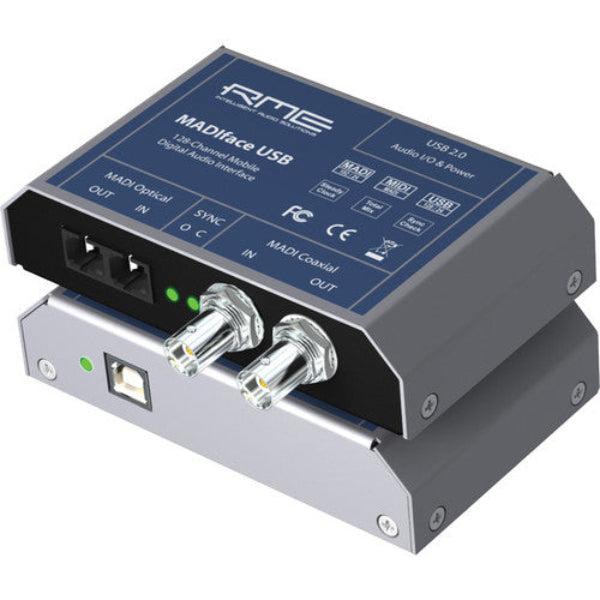

RME MADIface USB 128-Channel USB Interface for Mobile Computers
RME MADIface USB 128-Channel USB Interface for Mobile Computers
The MADIface USB is a professional audio interface designed for MADI systems, offering 128 channels of I/O. It features RME’s SteadyClock FS technology for ultra-low jitter and high audio fidelity. With its USB connectivity, it...
Type : MADI Interface
Availability : In stock Out of stock
Regular price
$999.00
Sale price
$999.00
Regular price
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Tags : MADI Interface
Collections :
Shipping & Returns
Shipping & Returns
- We deliver all US domestic orders within 6-10 business days!
- Cancelations are completely free of charge
- Returned Items must be unused and in original packaging
- Most items can be returned within 30 days of delivery unless otherwise noted
No Sales Tax On Your Order
No Sales Tax On Your Order
- No sales Tax On Your Order Except GA*
Why Shop With Us
Why Shop With Us
- Authorized Retailer for KMC music, Antelope audio and RME
- ZERO Sales Tax (for Georgia Residents)
- Speak with an Expert Today at 470-823-8373
The MADIface USB is a professional audio interface designed for MADI systems, offering 128 channels of I/O. It features RME’s SteadyClock FS technology for ultra-low jitter and high audio fidelity. With its USB connectivity, it integrates seamlessly with various systems, providing reliable performance for professional audio applications
Features
MADIface USB offers several operation modes when used with a Mac or Windows computer: 64 Channel Mix, Redundancy mode, 128 Channel Mix and a straight routing mode.
The option Disable TotalMix completely disables TotalMix, the unit's internal mixer and routing matrix. All input and output data is going straight to record/coming from playback, with no mixing or routing involved. In this mode the outputs are mirrored, carrying the same signal.
In 64 Channel Mix mode TotalMix shows 64 input, playback and output channels. All settings in TotalMix use the data from one MADI input port, and send identical data to both MADI output ports. The currently active MADI input port can be configured in the Settings dialog
The option AutoSelect activates an automatic input selection. Using both inputs at the same time, AutoSelect puts the device into Seamless Redundancy mode. The MADIface USB will switch to the other input in real-time if the current one fails.
In 128 Channel Mix mode record and playback is still limited to 64 channels, with the current input selected in the Settings dialog. But the other input is also available through TotalMix, and the output signal is not mirrored, but separated, with TotalMix having 128 output channels. Applications like independent mix output, monitoring and serial pass-through of the second source are just a few clicks away
SteadyClock as well as RME's well known MADI compatibility ensure operation with other devices. MIDI over MADI technology may be used to remote-control other MADI devices. DIGICheck, an included complete audio analyzing suite, supports the user under Mac OS X and Windows
The option Disable TotalMix completely disables TotalMix, the unit's internal mixer and routing matrix. All input and output data is going straight to record/coming from playback, with no mixing or routing involved. In this mode the outputs are mirrored, carrying the same signal.
In 64 Channel Mix mode TotalMix shows 64 input, playback and output channels. All settings in TotalMix use the data from one MADI input port, and send identical data to both MADI output ports. The currently active MADI input port can be configured in the Settings dialog
The option AutoSelect activates an automatic input selection. Using both inputs at the same time, AutoSelect puts the device into Seamless Redundancy mode. The MADIface USB will switch to the other input in real-time if the current one fails.
In 128 Channel Mix mode record and playback is still limited to 64 channels, with the current input selected in the Settings dialog. But the other input is also available through TotalMix, and the output signal is not mirrored, but separated, with TotalMix having 128 output channels. Applications like independent mix output, monitoring and serial pass-through of the second source are just a few clicks away
SteadyClock as well as RME's well known MADI compatibility ensure operation with other devices. MIDI over MADI technology may be used to remote-control other MADI devices. DIGICheck, an included complete audio analyzing suite, supports the user under Mac OS X and Windows
TotalMix
The MADIface USB also includes the powerful digital real-time mixer TotalMix FX. It allows for versatile mixing and routing operations, with all inputs and playback channels simultaneously, to any hardware outputs. It includes a dedicated Control Room section with talkback, main/phones, fader groups, mute groups, complete remote controllability via Mackie or OSC protocol, and much more.
