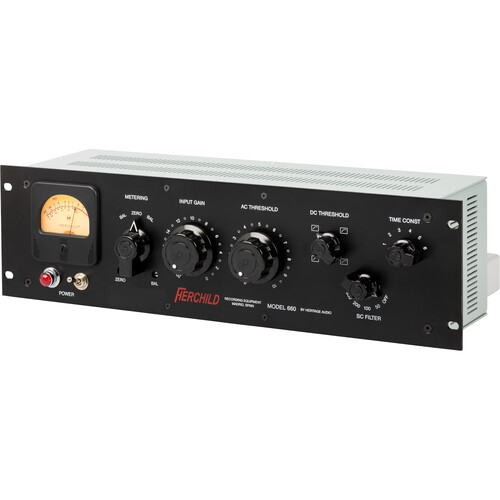

Heritage Audio Herchild 660 scaled view

Heritage Audio Herchild 660 Mono Tube Variable-Mu Compressor Limiter

$2,995.00
Availability: Translation missing: en.general.icons.icon_check_circle icon 9 in stock, ready to be shipped

Notify me when back in stock

📞 Call Gavin: 844-873-2323
Lead Time Icon
7–10 Business Day Lead Time This product is built to order and typically ships within 7–10 business days of purchase.
The Signal Chain Certainty System™
🔍
Personal Rig-Check $147 FREE
We review your mic, OS, and signal chain before your gear ships — and confirm everything works together.
📐
Studio Blueprint $197 FREE
Your personalized setup guide — exact connections, gain settings, and driver steps for your specific configuration.
🗺️
Upgrade Path Roadmap $97 FREE
What to add next and in what order — so you never overbuy or back yourself into a dead end.
🛡️
90-Day Compatibility Guarantee Exclusive
Every recommendation we make is personally verified. If anything doesn't perform as confirmed within 90 days, including driver conflicts, gain issues, or compatibility problems, contact us directly. We fix it. No runaround, no forums. A real person responds.
Total included support value:
$441 Included Free With Your Purchase
Get My Personalized Studio Blueprint →
Shipping Icon
Free Shipping
All US orders • 3–5 business days
Price match icon
Price Match Guarantee
Found it cheaper? We'll match it.
Why Shop Icon
Authorized Retailer
Expert support: 844-873-2323
Secure Checkout Icon
Secure Checkout
Visa, Mastercard, Amex, PayPal & more
Money Back Icon
30-Day Money-Back Guarantee
Risk-free returns, no questions asked
Description


Heritage Audio Herchild 660 Mono Tube Compressor Demo

  Heritage Audio Herchild 660 mono tube variable-mu compressor

Fairchild 660 Sound at Half the Weight and Price

Less than 1,000 original Fairchild 660s were built. A functioning vintage unit commands $15,000–$25,000 and weighs over 30 pounds. The Herchild 660 delivers identical variable-mu behavior — 11 tubes, 5 transformers (AMI input, CineMag output), all-tube sidechain — at 16.23 lbs and a fraction of the cost. Built in Heritage Audio's factory in Spain using NOS 6BA6 variable-mu tubes and custom transformers spec'd to match the original.

Front-panel DC Threshold (original required internal screw adjustment) gives continuous control over ratio and knee from hard limiting to transparent compression. Sidechain filter with four selectable frequencies (50, 100, 200, 350 Hz) reduces low-frequency influence on gain reduction. Six attack/release time constants exactly duplicated from the original.

 Heritage Audio Herchild 660 program dependent soft knee compression

Program-Dependent Soft-Knee Variable-Mu Compression

Variable-mu tube gain reduction starts with a gentle ratio on small peaks and progressively increases to brick-wall limiting on loud transients. The compression curve responds to the music itself, not a fixed threshold — creating the buttery, natural dynamics that made the original a staple at Abbey Road (EMI owned multiple 660s used on Beatles vocals).

High-voltage operation ensures no audible thumps. Extremely low distortion and noise: THD <1% up to +18 dBu output, self noise <-82 dBu, SNR 120 dB. Input impedance 2 kΩ, output impedance 600 Ω, max output +30 dBu. Frequency response 40 Hz–15 kHz (±1 dB). Single XLR input/output.

 Heritage Audio Herchild 660 handwired Class A 3U Spain

Handwired Class A, Built to Outlast the Original

3U rackmount. Standard IEC AC power. Controls: AC/DC Threshold, Input Gain, Time Constant (6 settings), SC Filter (Off/50/100/200/350 Hz), Metering. Hand-assembled using same construction techniques as vintage British modules Heritage Audio is known for. Modern components eliminate the maintenance headaches of 1960s units.

As an authorized dealer, Pro Audio Reserve ensures you receive a genuine Heritage Audio product backed by full manufacturer warranty and long-term support.

Highlights

  • Faithful Fairchild 660 recreation — 11 tubes, 5 transformers
  • NOS 6BA6 variable-mu tubes, AMI input transformer, CineMag output transformer
  • All-tube sidechain circuit for precise control
  • Program-dependent soft-knee compression (ratio increases with signal level)
  • Front-panel DC Threshold: continuous ratio/knee control (hard limit → transparent)
  • Sidechain filter: Off, 50, 100, 200, 350 Hz
  • Six attack/release time constants (exact original settings)
  • High-voltage operation eliminates audible thumps
  • Input impedance: 2 kΩ | Output impedance: 600 Ω
  • Max output: +30 dBu (clipping point)
  • Frequency response: 40 Hz–15 kHz (±1 dB)
  • SNR: 120 dB | Self noise: <-82 dBu | THD: <1% up to +18 dBu
  • 1 x XLR input, 1 x XLR output
  • 3U rackmount, 16.23 lbs
  • Handwired in Madrid, Spain

Heritage Audio Herchild 660 Specifications

Specification Details
Compressor Type Tube variable-mu compressor/limiter
Number of Channels 1 (mono)
Circuit Design Class A, handwired
Tubes 11 tubes (NOS 6BA6 variable-mu)
Transformers 5 transformers (AMI input, CineMag output)
Sidechain Circuit All-tube
Frequency Response 40 Hz – 15 kHz (±1 dB)
Signal-to-Noise Ratio 120 dB
Self Noise Less than -82 dBu
Harmonic Distortion Less than 1% at any level up to +18 dBu output (no limiting)
Input Impedance 2 kΩ
Output Impedance 600 Ω
Maximum Output Level +30 dBu (clipping point)
Controls AC/DC Threshold, Input Gain, Time Constant, SC Filter, Metering
Time Constants 6 attack/release settings (original Fairchild specs)
Sidechain Filter Frequencies Off, 50 Hz, 100 Hz, 200 Hz, 350 Hz
Analog Input 1 x XLR
Analog Output 1 x XLR
Rack Spaces 3U
Dimensions (W x H x D) 19" x 5.25" x 7.87"
Weight 16.23 lbs
Power Source Standard IEC AC cable
Manufactured Madrid, Spain

What's in the Box

Included Items
Heritage Audio Herchild 660 Mono Tube Compressor/Limiter
Power Cable
User Manual
