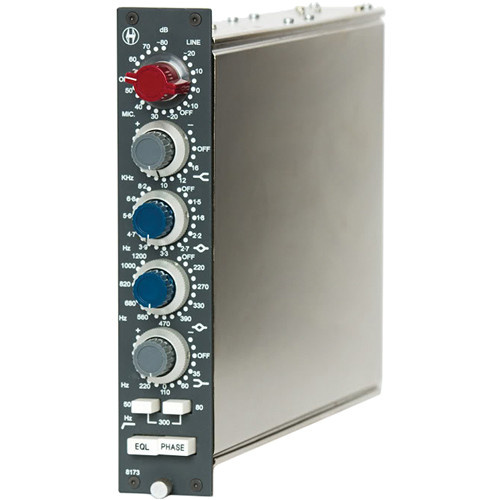

Heritage Audio 8173 80 Series front view

Heritage Audio 8173 80 Series Microphone Preamp and EQ Module

$2,999.00
Availability: Translation missing: en.general.icons.icon_check_circle icon 9 in stock, ready to be shipped

Notify me when back in stock

📞 Call Gavin: 844-873-2323
Lead Time Icon
7–10 Business Day Lead Time This product is built to order and typically ships within 7–10 business days of purchase.
The Signal Chain Certainty System™
🔍
Personal Rig-Check $147 FREE
We review your mic, OS, and signal chain before your gear ships — and confirm everything works together.
📐
Studio Blueprint $197 FREE
Your personalized setup guide — exact connections, gain settings, and driver steps for your specific configuration.
🗺️
Upgrade Path Roadmap $97 FREE
What to add next and in what order — so you never overbuy or back yourself into a dead end.
🛡️
90-Day Compatibility Guarantee Exclusive
Every recommendation we make is personally verified. If anything doesn't perform as confirmed within 90 days, including driver conflicts, gain issues, or compatibility problems, contact us directly. We fix it. No runaround, no forums. A real person responds.
Total included support value:
$441 Included Free With Your Purchase
Get My Personalized Studio Blueprint →
Shipping Icon
Free Shipping
All US orders • 3–5 business days
Price match icon
Price Match Guarantee
Found it cheaper? We'll match it.
Why Shop Icon
Authorized Retailer
Expert support: 844-873-2323
Secure Checkout Icon
Secure Checkout
Visa, Mastercard, Amex, PayPal & more
Money Back Icon
30-Day Money-Back Guarantee
Risk-free returns, no questions asked
Description

Heritage Audio 8173 80 Series Microphone Preamp and EQ Module

Heritage Audio 8173 Preamp EQ Module Overview

  Heritage Audio 8173 80 series microphone preamp EQ module

The 1073 Preamp Meets the 1081 EQ — Finally

For decades, engineers working on classic 80 Series consoles faced a choice: the 1073's warm Class A preamp with its limited two-band EQ, or the 1081's far more flexible four-band EQ with its less desirable Class A/B output stage. Heritage Audio's answer is the 8173 — a module that puts 1073-grade Class A amplification in front of the 1081's full four-band equalizer, a combination that should have existed from the start.

The 8173 uses Carnhill Transformers' Oxford factory-wound custom input transformers co-designed to Heritage Audio's requirements, ensuring the correct harmonic distortion content and saturation points of original units. Custom polystyrene and polypropylene film tone capacitors were developed to match the Siemens Styroflex and Mullard Mustard types used in late 1960s and early 1970s British consoles. All five PCB cards are handwired in Heritage Audio's factory in Spain using the same old-fashioned soldering techniques of the era.

 Heritage Audio 8173 four band EQ 1081 mid bands inductor

Four-Band EQ Covering the Full Audible Spectrum

The 8173's EQ section combines 1073-style Baxandall shelving bands for highs and lows with the full 1081 mid band sweep coverage. High-frequency shelving offers ±16 dB at 10, 12, or 16 kHz. Low-frequency shelving offers ±16 dB across four frequencies: 35, 60, 110, or 220 Hz. Both shelf bands use genuine Baxandall curves for that incredibly natural-sounding, musical roll-off and boost that made the original famous.

The 1081-derived mid bands are inductor-based with fixed Q and cover almost the entire audible frequency range. The upper mid delivers ±18 dB across ten selectable center frequencies from 1.5 kHz to 8.2 kHz — perfect for adding presence, air, or sharpening attack. The lower mid offers ±18 dB across ten frequencies from 220 Hz to 1.2 kHz, covering everything from clearing low-mid mud to shaping body and warmth. An 18 dB/octave high-pass filter is switchable between 50, 80, and 300 Hz.

 Heritage Audio 8173 Class A ribbon mic 80dB gain impedance

80dB Class A Preamp With Selectable Input Impedance

The 8173's Class A microphone preamp offers up to 80 dB of gain in 5 dB steps with switchable HI/LO input impedance. In HI mode the minimum impedance is 1,200 Ω, ideal for modern condensers and dynamics. In LO mode the minimum is 300 Ω, optimized for passive ribbon microphones. Higher gain positions gradually increase impedance further, making the 8173 an excellent choice for even the most demanding low-output ribbons.

A 10 dB Class A line amplifier with bridging 10 kΩ input impedance and a 2N3055-driven high-headroom output stage handles line-level sources. Output impedance is less than 75 Ω transformer balanced and floating, capable of driving 600 Ω loads. Maximum output exceeds +26 dBu into 600 Ω and +32 dBu into 10 kΩ. The module is compatible with vintage 80 Series consoles, Heritage Audio Frame 8, and Heritage Audio Rack 2 enclosures. As an authorized dealer, Pro Audio Reserve ensures you receive a genuine Heritage Audio product backed by full manufacturer warranty and long-term support.

Highlights

  • Combines 1073-style Class A preamp with full 1081-style four-band EQ
  • 80 dB Class A mic preamp in 5 dB steps with HI/LO selectable input impedance
  • 10 dB Class A line amplifier with 2N3055-driven output stage
  • High-frequency shelving: ±16 dB at 10, 12, or 16 kHz (Baxandall, 1084-style selection)
  • Low-frequency shelving: ±16 dB at 35, 60, 110, or 220 Hz (Baxandall)
  • Upper mid EQ: ±18 dB at 1.5, 1.8, 2.2, 2.7, 3.3, 3.9, 4.7, 5.6, 6.8, 8.2 kHz (inductor, fixed Q)
  • Lower mid EQ: ±18 dB at 220, 270, 330, 390, 470, 560, 680, 820, 1000, 1200 Hz (inductor, fixed Q)
  • High-pass filter: 18 dB/octave at 50, 80, or 300 Hz
  • Custom Carnhill Transformers input transformer (co-designed with Heritage Audio)
  • Custom vintage-matched tone capacitors (polystyrene and polypropylene film)
  • Mic input impedance: HI = 1,200 Ω min, LO = 300 Ω min
  • Line input impedance: 10 kΩ bridging
  • Output impedance: less than 75 Ω (transformer balanced and floating)
  • Maximum output: >+26 dBu into 600 Ω, >+32 dBu into 10 kΩ
  • Noise: less than -100 dBu
  • THD: less than 0.025% at 1 kHz, less than 0.05% at 100 Hz
  • Handwired in Heritage Audio's factory in Spain across five plug-in PCB cards
  • Compatible with 80 Series consoles, Heritage Audio Frame 8, and Rack 2

Heritage Audio 8173 Specifications

Specification Details
Format 80 Series module (8¾" format)
Compatible Chassis Vintage 80 Series consoles, Heritage Audio Frame 8, Heritage Audio Rack 2
Preamp Type Class A, solid state
Maximum Mic Preamp Gain Slightly greater than 80 dB (in 5 dB steps)
Mic Input Impedance HI: 1,200 Ω minimum | LO: 300 Ω minimum (transformer balanced and floating)
Line Input Impedance 10 kΩ bridging (transformer balanced and floating)
DI Input Impedance Greater than 2 MΩ (unbalanced)
Line Amplifier 10 dB Class A, 2N3055-driven high headroom output stage
Output Impedance Less than 75 Ω (transformer balanced and floating)
Maximum Output >+26 dBu into 600 Ω | >+32 dBu into 10 kΩ
Frequency Response 20 Hz (+0.3 dB) to 20 kHz (-0.2 dB)
Noise Less than -100 dBu
THD Less than 0.025% at 1 kHz | Less than 0.05% at 100 Hz
High Frequency EQ ±16 dB shelving at 10, 12, or 16 kHz (Baxandall)
Low Frequency EQ ±16 dB shelving at 35, 60, 110, or 220 Hz (Baxandall)
Upper Mid EQ ±18 dB peaking (fixed Q, inductor) at 1.5, 1.8, 2.2, 2.7, 3.3, 3.9, 4.7, 5.6, 6.8, 8.2 kHz
Lower Mid EQ ±18 dB peaking (fixed Q, inductor) at 220, 270, 330, 390, 470, 560, 680, 820, 1000, 1200 Hz
High-Pass Filter 18 dB/octave at 50, 80, or 300 Hz (inductor based)
Phantom Power +48V supplied by chassis
Power Consumption Less than 86 mA per rail @ ±16V DC

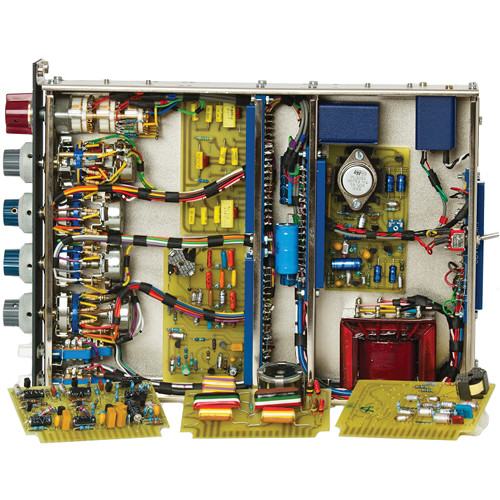

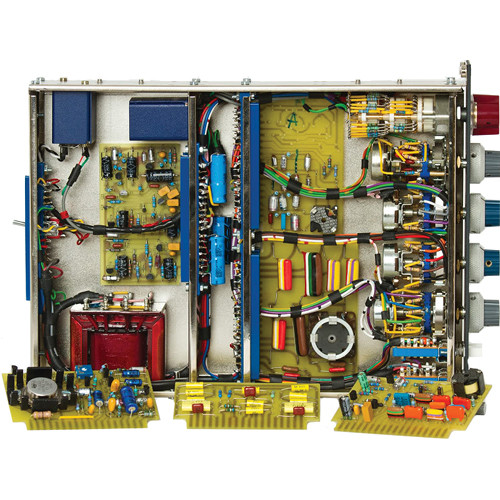

Construction Five plug-in PCB cards, fully handwired, Carnhill input transformer
Manufactured Spain

What's in the Box

Included Items
Heritage Audio 8173 80 Series Microphone Preamp and EQ Module
User Documentation
