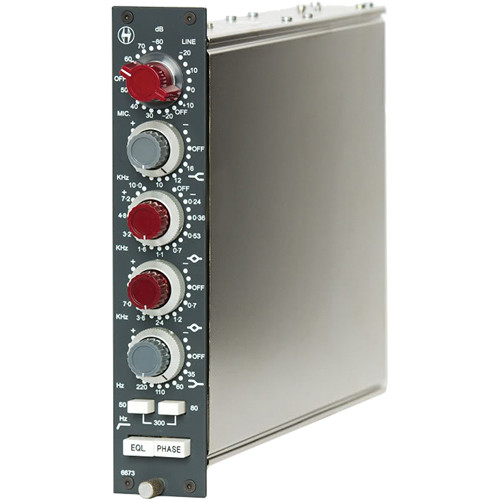

Heritage Audio 6673 scaled view

Heritage Audio 6673 80 Series Microphone Preamp and EQ Module

$2,999.00
Availability: Translation missing: en.general.icons.icon_check_circle icon 9 in stock, ready to be shipped

Notify me when back in stock

📞 Call Gavin: 844-873-2323
Lead Time Icon
7–10 Business Day Lead Time This product is built to order and typically ships within 7–10 business days of purchase.
The Signal Chain Certainty System™
🔍
Personal Rig-Check $147 FREE
We review your mic, OS, and signal chain before your gear ships — and confirm everything works together.
📐
Studio Blueprint $197 FREE
Your personalized setup guide — exact connections, gain settings, and driver steps for your specific configuration.
🗺️
Upgrade Path Roadmap $97 FREE
What to add next and in what order — so you never overbuy or back yourself into a dead end.
🛡️
90-Day Compatibility Guarantee Exclusive
Every recommendation we make is personally verified. If anything doesn't perform as confirmed within 90 days, including driver conflicts, gain issues, or compatibility problems, contact us directly. We fix it. No runaround, no forums. A real person responds.
Total included support value:
$441 Included Free With Your Purchase
Get My Personalized Studio Blueprint →
Shipping Icon
Free Shipping
All US orders • 3–5 business days
Price match icon
Price Match Guarantee
Found it cheaper? We'll match it.
Why Shop Icon
Authorized Retailer
Expert support: 844-873-2323
Secure Checkout Icon
Secure Checkout
Visa, Mastercard, Amex, PayPal & more
Money Back Icon
30-Day Money-Back Guarantee
Risk-free returns, no questions asked
Description



Heritage Audio 6673 Preamp EQ Module Overview

  Heritage Audio 6673 80 series microphone preamp four-band EQ module

1073 Preamp + 1066 Constant-Q Mid = Four-Band EQ Monster

The 6673 solves a 50-year-old problem: choosing between the 1073's punchy three-band EQ and the 1066's sweet constant-Q midband. Heritage Audio put both in one module. You get the 1073's full three-band circuit plus the 1066's inductor-based constant-Q mid EQ — four bands total. The 1073 mid section was expanded with three additional frequencies (240, 360, 530 Hz) for better low-mid control. High shelf now switches between 10, 12, or 16 kHz instead of being fixed at 12 kHz.

Same Class A 73-style preamp as the 8173: 80 dB gain in 5 dB steps, HI/LO impedance switch (1,200 Ω / 300 Ω minimum), Carnhill transformers, 2N3055-driven output stage. Noise below -100 dBu, THD under 0.025% at 1 kHz. Handwired in Spain on five plug-in PCB cards using 1970s soldering techniques.

 Heritage Audio 6673 four band EQ 1073 1066 inductor constant Q

Four Inductor-Based EQ Bands Cover 35 Hz to 16 kHz

High shelf (Baxandall): ±16 dB at 10, 12, or 16 kHz
Low shelf (Baxandall): ±16 dB at 35, 60, 110, or 220 Hz
1073 mid (fixed Q, dual inductor): ±18 dB at 240, 360, 530, 700, 1100, 1600, 3200, 4800, 7200, 10000 Hz
1066 mid (constant Q, inductor): ±18 dB at 700, 1200, 2400, 3600, 7000 Hz
High-pass filter: 18 dB/octave at 50, 80, or 300 Hz

Both mid bands can be used simultaneously — boost at 700 Hz with the 1066 circuit for thick guitars, then cut at 360 Hz with the 1073 band to clear mud. The constant-Q 1066 circuit maintains consistent bandwidth regardless of boost/cut amount, unlike the 1073's fixed-Q design.

 Heritage Audio 6673 Class A ribbon mic 80dB gain impedance

80 Series Compatible, Frame 8, or Rack 2 Ready

Fits vintage 80 Series consoles, Heritage Audio Frame 8, and Rack 2 enclosures. 10 dB Class A line amplifier with 10 kΩ bridging input impedance. Output impedance below 75 Ω transformer-balanced and floating, drives 600 Ω loads. Maximum output greater than +26 dBu into 600 Ω and greater than +32 dBu into 10 kΩ. Frequency response 20 Hz (+0.3 dB) to 20 kHz (-0.2 dB).

Power consumption under 110 mA at 24V DC (supplied by chassis). As an authorized dealer, Pro Audio Reserve ensures you receive a genuine Heritage Audio product backed by full manufacturer warranty and long-term support.

Highlights

  • 1073 Class A preamp + 1066 constant-Q mid EQ + expanded 1073 mid = 4-band module
  • 80 dB Class A mic preamp (5 dB steps), 10 dB Class A line amp
  • HI/LO mic impedance: 1,200 Ω / 300 Ω minimum (ribbon compatible)
  • Carnhill input/output transformers, 2N3055 output stage
  • High shelf (Baxandall): ±16 dB at 10, 12, 16 kHz
  • Low shelf (Baxandall): ±16 dB at 35, 60, 110, 220 Hz
  • 1073 mid (dual inductor, fixed Q): ±18 dB at 10 frequencies (240–10k Hz)
  • 1066 mid (inductor, constant Q): ±18 dB at 700, 1200, 2400, 3600, 7000 Hz
  • 18 dB/oct high-pass: 50, 80, 300 Hz (inductor)
  • Max output: >+26 dBu (600 Ω), >+32 dBu (10 kΩ)
  • Noise: <-100 dBu | THD: <0.025% (1 kHz), <0.05% (100 Hz)
  • Frequency response: 20 Hz (+0.3 dB) to 20 kHz (-0.2 dB)
  • Handwired in Spain on five PCB cards
  • Compatible: 80 Series consoles, Frame 8, Rack 2

Heritage Audio 6673 Specifications

Specification Details
Format 80 Series module (1073-sized)
Compatible Chassis Vintage 80 Series consoles, Heritage Audio Frame 8, Heritage Audio Rack 2
Preamp Type Class A, solid state (73-style)
Maximum Mic Preamp Gain Slightly greater than 80 dB (in 5 dB steps)
Mic Input Impedance HI: 1,200 Ω minimum | LO: 300 Ω minimum (transformer balanced and floating)
Line Input Impedance 10 kΩ bridging (transformer balanced and floating)
Line Amplifier 10 dB Class A, 2N3055-driven high headroom output stage
Output Impedance Less than 75 Ω (transformer balanced and floating)
Maximum Output >+26 dBu into 600 Ω | >+32 dBu into 10 kΩ
Frequency Response 20 Hz (+0.3 dB) to 20 kHz (-0.2 dB)
Noise Less than -100 dBu
THD Less than 0.025% at 1 kHz | Less than 0.05% at 100 Hz
High Frequency EQ ±16 dB shelving at 10, 12, or 16 kHz (Baxandall)
Low Frequency EQ ±16 dB shelving at 35, 60, 110, or 220 Hz (Baxandall)
1073 Mid EQ ±18 dB peaking (fixed Q, dual inductor) at 240, 360, 530, 700, 1100, 1600, 3200, 4800, 7200, 10000 Hz
1066 Mid EQ ±18 dB peaking (constant Q, inductor) at 700, 1200, 2400, 3600, 7000 Hz
High-Pass Filter 18 dB/octave at 50, 80, or 300 Hz (inductor based)
Phantom Power +48V supplied by chassis
Power Consumption Less than 110 mA @ 24V DC

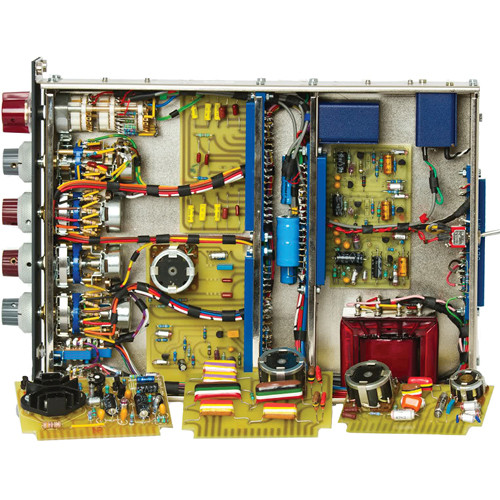

Construction Five plug-in PCB cards, fully handwired, Carnhill transformers
Manufactured Spain
