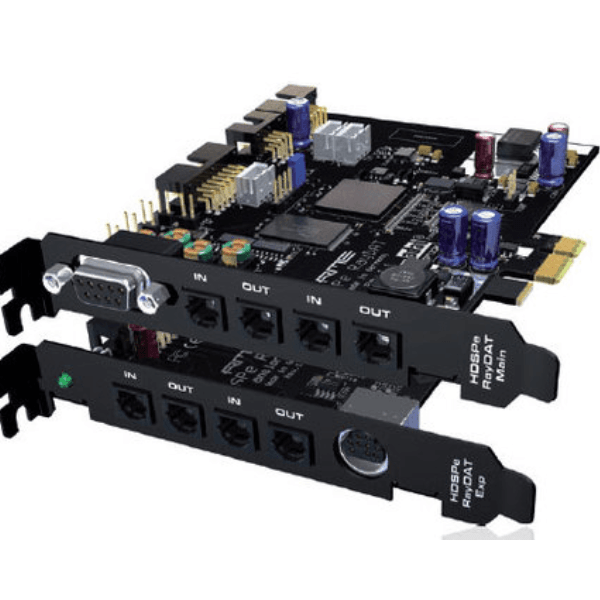

RME HDSPe RayDAT - 36 Channel Digital Audio & MIDI PCI Express Card System
RME HDSPe RayDAT - 36 Channel Digital Audio & MIDI PCI Express Card System
The RME HDSPe RayDAT is a high-performance PCI Express card system for Mac and Windows, offering 36 inputs and 36 outputs. It includes 4 optical ADAT I/Os supporting S/MUX technology for 192 kHz recording, plus...
Type : Express Cards
Availability : In stock Out of stock
Regular price
$949.00
Sale price
$949.00
Regular price
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Tags : Express Cards
Collections : Express Cards
Shipping & Returns
Shipping & Returns
- We deliver all US domestic orders within 6-10 business days!
- Cancelations are completely free of charge
- Returned Items must be unused and in original packaging
- Most items can be returned within 30 days of delivery unless otherwise noted
No Sales Tax On Your Order
No Sales Tax On Your Order
- No sales Tax On Your Order Except GA*
Why Shop With Us
Why Shop With Us
- Authorized Retailer for KMC music, Antelope audio and RME
- ZERO Sales Tax (for Georgia Residents)
- Speak with an Expert Today at 470-823-8373
The RME HDSPe RayDAT is a high-performance PCI Express card system for Mac and Windows, offering 36 inputs and 36 outputs. It includes 4 optical ADAT I/Os supporting S/MUX technology for 192 kHz recording, plus S/PDIF and AES/EBU ports, and two MIDI I/Os via breakout cables.
The system features a main card and an expansion card, with plug-and-play installation. Up to four RayDAT cards can be used together for extensive I/O needs.
TotalMix, RME’s real-time software mixer, enables versatile routing and zero-latency monitoring, supporting up to 18 stereo submixes. DIGICheck software provides advanced audio analysis tools.
The HDSPe RayDAT combines extensive I/O capabilities, flexible routing, and RME’s renowned audio performance.
Features
- 4 x ADAT digital I/O, supporting 192 kHz via S/MUX4 operation
- 1 x S/PDIF digital I/O, 192 kHz capable
- 1 x AES/EBU digital I/O, 192 kHz capable
- 2 x MIDI I/O, 32 channels high-speed MIDI via breakout cable
- Up to 36 inputs and 36 outputs can be used simultaneously
- Includes DIGICheck, RME's unique metering and analyzing tool
- Includes TotalMix: a 2592 channel software mixer with 42-bit internal resolution
- Native PCI Express - no PCI to PCI Express bridge used
- S/MUX poured in hardware: 16 channels 24-bit/96 kHz for record and playback on ADAT optical
- All settings can be changed in real-time
- AES and S/PDIF I/Os can be used simultaneously
- Automatic and intelligent master/slave clock control
- SyncAlign guarantees sample aligned and never swapping channels
- SyncCheck tests and reports the synchronization status of input signals
- Includes SteadyClock: a Jitter-immune, super-stable digital clock
- Optional Time Code module (TCO) for external Video/SMPTE synchronization
