Description

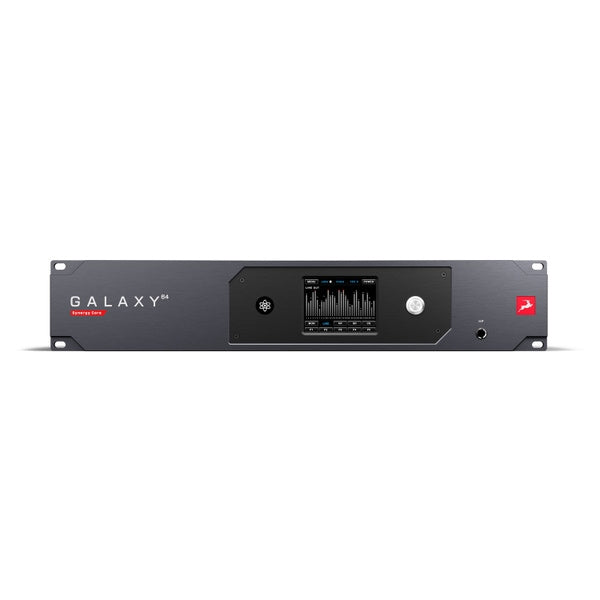

Antelope Audio Synergy Core Front view

Antelope Audio Galaxy 64 Synergy Core – The World’s First 64-Channel AD/DA Interface with HDX, Dante, and Thunderbolt™ 3

The Antelope Audio Galaxy 64 Synergy Core is engineered to be the central hub of any modern production environment. Combining Thunderbolt™ 3, USB 2.0, Dante™, HDX, and MADI connectivity in a single 2U rackmount unit, this flagship interface eliminates the need for multiple converters and expansion cards, delivering a streamlined, high-performance workflow for studios of any size.

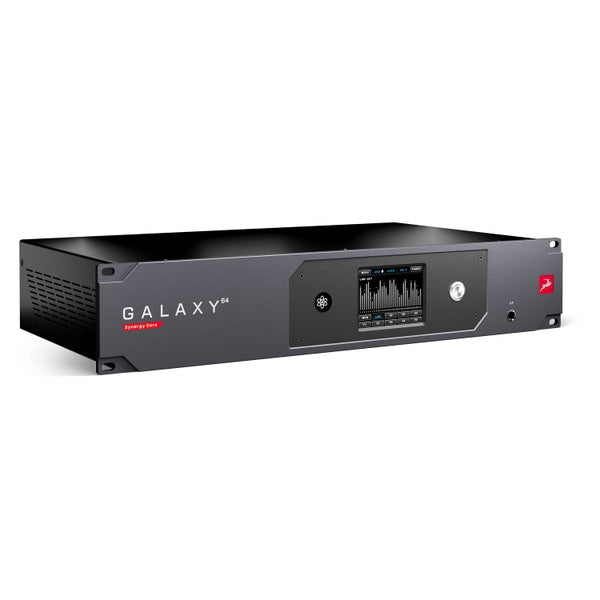

 Antelope Audio Galaxy 64 synergy core front angle view

Unmatched Conversion and Clocking Precision

At the heart of the Galaxy 64 is Antelope’s legendary Acoustically Focused Clocking technology and ultra-wide dynamic range converters. With pristine 64-channel AD/DA conversion and an astonishing dynamic range of up to 130 dB on the monitor outputs, your mixes retain depth, detail, and clarity from tracking to mastering. The result is lifelike stereo imaging and artifact-free conversion that captures every nuance of your performance.

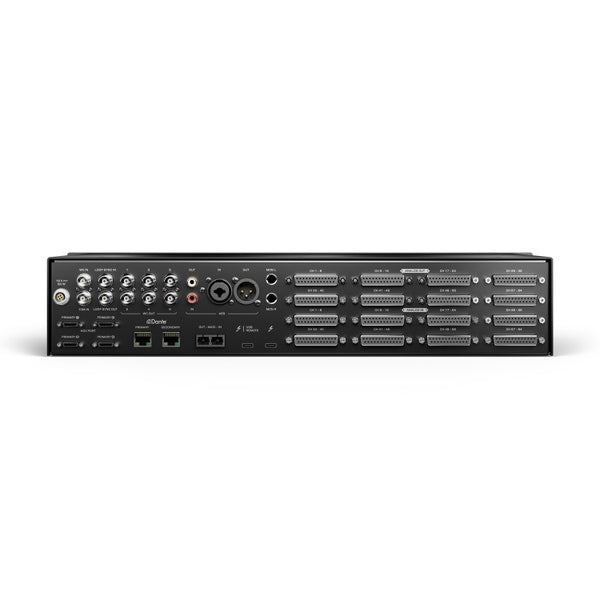

 Antelope Audio Galaxy 64 synergy core rear view

Synergy Core DSP Power for Massive Sessions

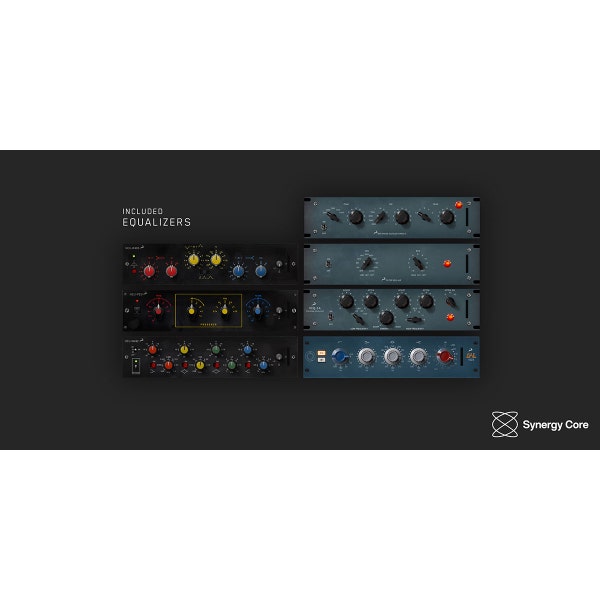

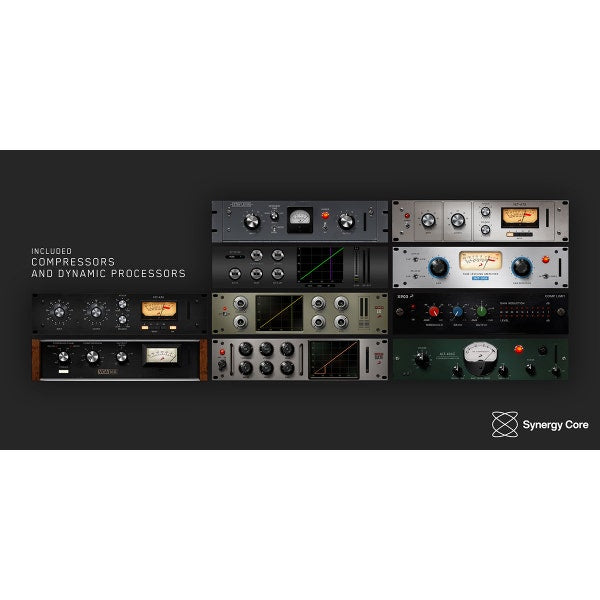

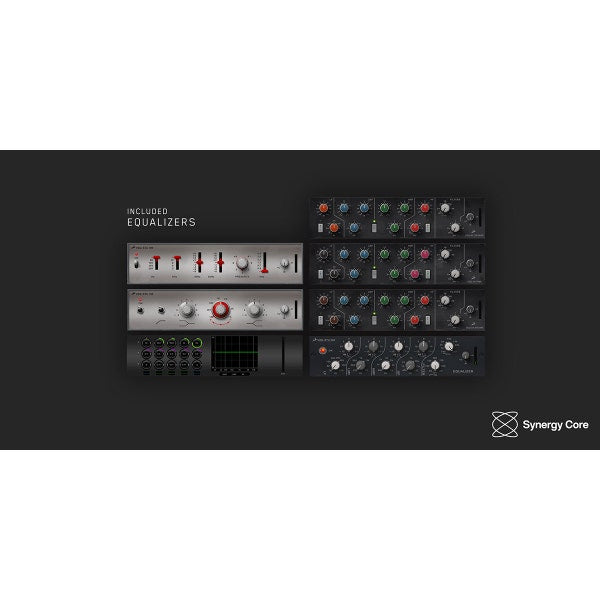

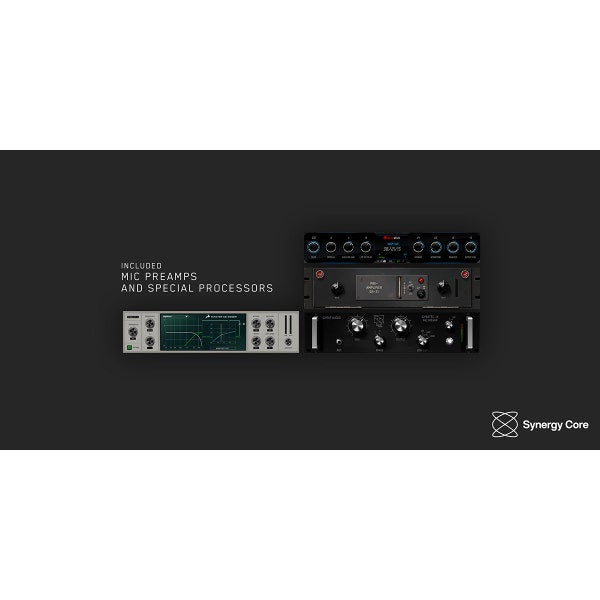

The Galaxy 64 Synergy Core harnesses 12 ARM DSP processors and 2 FPGA chips, allowing you to run up to 256 real-time FX instances without straining your computer. With 36 included Core FX—spanning EQs, compressors, channel strips, reverbs, and special processors—you can shape your sound at the highest quality, all with near-zero latency. Ideal for both recording and live performance, this DSP platform keeps your workflow smooth even under the heaviest load.

Galaxy 64 Synergy Core Specifications

Specification Details
Display 1x Color Touchscreen
Channels of I/O Analog: 64 Inputs / 64 Outputs
Dante: 64 Inputs / 64 Outputs at 44.1/48 kHz
DigiLink: 128 Inputs / 128 Outputs at 192 kHz
Thunderbolt: 64 Inputs / 64 Outputs
Maximum Sampling Rate 192 kHz / 24-Bit
Number of Microphone Inputs No
Pad No
Gain/Trim Range DB-25 Line Inputs: +14 dBu to +24 dBu (in 1 dB Steps)
DB-25 Line Outputs: -∞ to +24 dBu (in 1 dB Steps)
1/4" Monitor Outputs: -∞ to +24 dBu (in 1 dB Steps)
High-Pass Filter No
Solo/Mute No
Analog Audio I/O 8x DB-25 25-Pin Balanced Line Input (AES 59/Tascam Pinout)
8x DB-25 25-Pin Balanced Line Output (AES 59/Tascam Pinout)
2x 1/4" TRS Balanced Monitor Output
1x 1/4" TRS Unbalanced Headphone Output
Phantom Power No
Digital Audio I/O 1x SC-Plug Optical MADI Input
1x SC-Plug Optical MADI Output
1x XLR 3-Pin AES3 Input
1x XLR 3-Pin AES3 Output
1x RCA Coaxial S/PDIF Input
1x RCA Coaxial S/PDIF Output
Host Connection 2x Thunderbolt/Mini DisplayPort
4x DigiLink Mini
Host Connection Protocol Thunderbolt 3, Avid Proprietary
USB (Non-Host) 1x USB-C (Remote)
Sync I/O 1x BNC Atomic Clock Input
1x BNC Word Clock Input
6x BNC Word Clock Output
1x BNC Loop Sync Input
1x BNC Loop Sync Output
Network I/O 2x RJ45 Dante
MIDI I/O No
Expansion Slots No
Maximum Output Level 1/4" Headphone Outputs: +20 dBu
Impedance DB-25 Line Inputs: 11.2 Kilohms (Balanced)
DB-25 Line Outputs: 56 Ohms (Balanced)
1/4" Headphone Outputs: 120 Ohms (Unbalanced)
Dynamic Range DB-25 Line Inputs: 124 dB
DB-25 Line Outputs: 128 dB
1/4" Monitor Outputs: 130 dB
THD+N DB-25 Line Inputs: -112 dB
DB-25 Line Outputs: -115 dB
1/4" Monitor Outputs: -115 dB
1/4" Headphone Outputs: -115 dB
Sample Rates Up to 192 kHz
Sample Rate Conversion On S/PDIF I/O
Bit Depths Up to 24-Bit
Sync Sources ADAT, Atomic Clock, Internal, S/PDIF, Word Clock
Clocking Word Clock: Input Termination: 75 Ohms; Input Voltage: 3 V p-p; Output Voltage: 3 V p-p
Atomic Clock: Input Termination: 75 Ohms; Input Voltage: 1 V p-p
Media/Memory Card Slot No
OS Compatibility macOS 10.12 or Later / Windows 10 or Later
Mobile Device Compatibility No
Required Hardware Available DigiLink Mini Port, Ethernet Port, or Thunderbolt Port; Thunderbolt Cable (Not Included)
Power Requirements AC/DC Power Adapter (Included) — 18 VDC
Rackmount Size 2U (with Included Hardware)
Dimensions 19 x 10.6 x 3.5" / 48.3 x 26.9 x 8.9 cm
Weight 14.1 lb / 6.4 kg
Package Weight 19.315 lb
Box Dimensions (LxWxH) 24.9 x 16.2 x 5.7"
