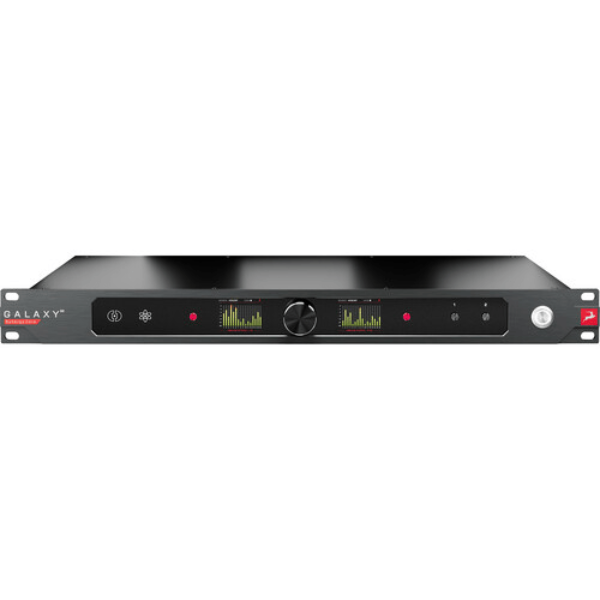

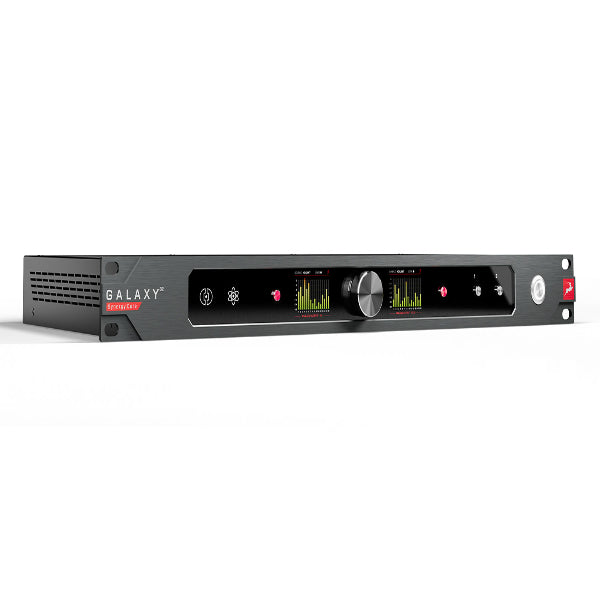

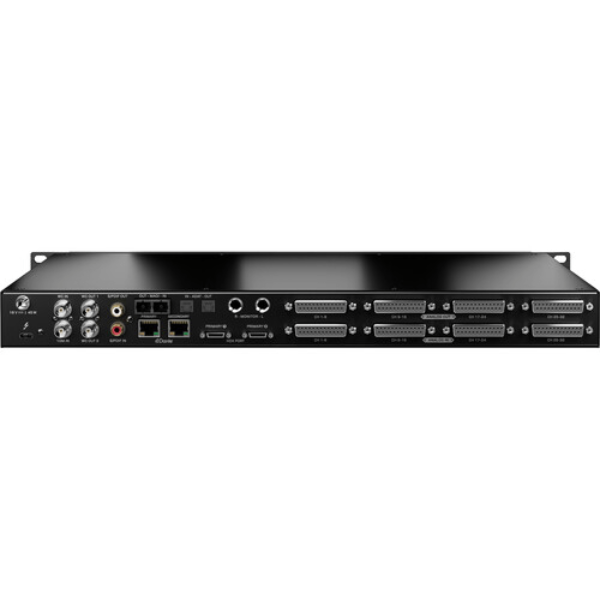

Perfectly suited for professional recording studios, high-end production, and broadcast facilities, the Antelope Audio Galaxy 32 Synergy Core sets the standard with its Dante audio capability and advanced processing power. Featuring 32 analog inputs and outputs (I/O) via 25-pin D-sub connectors, alongside comprehensive digital I/O options, the Galaxy 32 serves as the central hub for large-scale production applications.

Built-in Dante connectivity enables seamless integration with Audio Over IP systems using a single LAN Ethernet cable, streamlining connectivity across your facility. Dual HDX ports provide out-of-the-box compatibility with Pro Tools, supporting up to 64 channels of I/O at 192kHz for demanding multimedia productions, including surround and immersive audio protocols.

Antelope Audio's renowned clocking technology ensures flawless audio conversion and perfect sync, delivering master-grade tracks that tie your productions together seamlessly. With Synergy Core processing, the Galaxy 32 offers a vast array of FPGA-based and DSP effects, from vintage analog emulations to cutting-edge digital processing, enhancing creative possibilities in any production environment.

Experience uncompromising audio quality and connectivity with the Antelope Audio Galaxy 32 Synergy Core, designed to meet the demands of professional audio production.

Antelope Audio GALAXY-32-SYN-CORE Includes:

• Power cable
• Power adapter
• Getting Started guide

Antelope Audio GALAXY-32-SYN-CORE Features:

• 32 analog input channels over 4 × D-Sub 25 connectors with AC/DC coupling switch (TASCAM standard)
• Dante™ audio over IP with primary port for audio transfer over long distances and a mirrored secondary port for redundancy
• 2 × HDX ports (24-bit, 192kHz): up to 64 channels I/O for Pro Tools HD / HDX integration
• Thunderbolt™ 3 port with custom macOS & Windows drivers for low latency performance in native DAW applications
• Digital I/O: 64 channels of optical MADI, 8 channels of ADAT, and 2 channels over S/PDIF
• Proprietary 64-bit AFC™ (Acoustically Focused Clocking) technology delivering spacious stereo image with distinct separation for an unrivalled level of detail
• High-resolution A/D and D/A conversion ensuring artefact-free recordings and mastering-grade converter

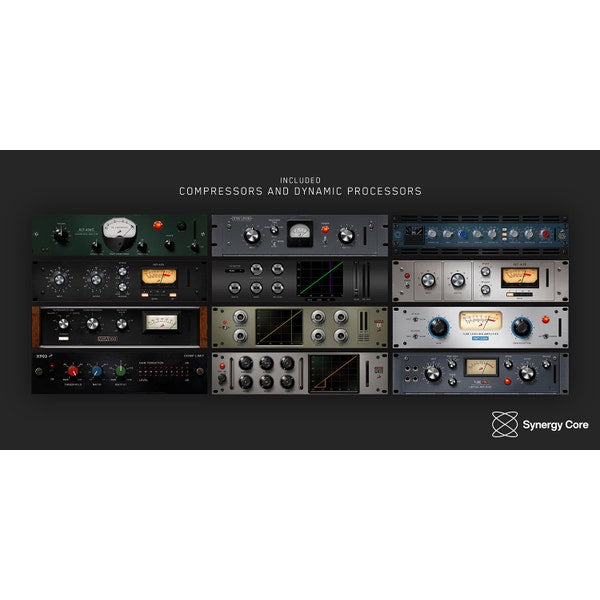

• Collection of 37 Synergy Core effects modeled after classic and rare analog outboard gear
• Up to 128 real-time effects instances per session loaded simultaneously
• Virtual patch-bay allowing execution of complicated input/output signal routing with a simple drag and drop
• All digital ports can be used simultaneously for easy integration with multiple systems and different setups
• 4 x onboard low-latency stereo mixers with 32 input channels each, with adjustable levels, panning and reverb settings – suitable for monitoring or summing

Antelope Audio GALAXY-32-SYN-CORE Specifications:

• AD Line Input
  • Input Connection: 4 x D-sub 25-pin (Tascam Standard)
  • I/O Channel Count: 32 Channels
  • Input level trim: 12 dBu to 22 dBu in steps of 1 dB
  • Dynamic Range: 122 dB
  • Supported sample rates: 44.1 kHz—192 kHz, 24-bit
  • THD+N (A): -116 dB
  • Impedance Load: 11.2 kOhms
• DA Line Output
  • Output Connection: 4 x DC-coupled D-sub-25-pin (Tascam Standard)
  • I/O Channel Count: 32 Channels
  • Output level: -inf to 22dBu // 1 dB step
  • Dynamic Range: 128 dB
  • Supported sample rates: 44.1 kHz—192 kHz, 24-bit
  • THD+N (A): -115 dB
  • Impedance Load: 56 Ohms
• DA Monitor Output
  • Output Connection: 2 x 1/4” 6.35 mm Jack (3 pin)
  • Channel Count: 2 Channels
  • Output level: -inf to 22dBu // 1 dB step
  • Dynamic Range: 130 dB
  • Supported sample rates: 44.1 kHz—192 kHz, 24-bit
  • THD+N (A): -115 dB
  • Impedance Load: 56 Ohms
• Digital Interface – Thunderbolt™
  • Interface Connection: 1 x Thunderbolt 3 Port, I/O
  • I/O Channel Count: 64 Channels
  • Supported sample rates: 44.1 kHz—192 kHz, 24-bit
  • Control Panel Support: Supported
• Digital Interface - Dante®
  • Interface Connection: 2 x RJ-45 Ports, I/O
  • I/O Channel Count: 64 Channels (@44.1/48.0 kHz)
  • Connectivity: Primary and Redundant
  • Supported sample rates: 44.1 kHz—192 kHz, 24-bit
• Digital Interface - HDX
  • Interface Connection: 2 x HDX Ports, I/O
  • I/O Channel Count: 64 Channels (32 Per Port)
  • Primary/Secondary ports: 2 Primary
  • Supported sample rates: 44.1 kHz—192 kHz, 24-bit PCM
  • Delay Compensation: Supported
  • Manual Delay Compensation: Supported (up to 128 samples)
  • Session I/O Support: Yes (16x16)
• Digital Interface - MADI
  • Interface Connection: 2 x Optical SC Connectors
  • MADI Mode: Dual Wire, Optical
  • SMUX: Supported
  • Madi Protocol: AES10-2003
  • I/O Channel Count: 64 Channels (@44.1/48.0 kHz)
  • Supported sample rates: 44.1 kHz—192 kHz, 24-bit
• Digital Interface - S/PDIF
  • Interface Connection: 2 x RCA Connectors
  • SPDIF SRC: Not Supported
  • I/O Channel Count: 2 Channels
  • Supported sample rates: 44.1 kHz—192 kHz, 24-bit
• Digital Interface - ADAT
  • Interface Connection: 2 x Optical
  • SMUX MODE: Supported
  • I/O Channel Count: 8 Channels I/O (@ 44,1/48 kHz)
  • Supported sample rates: 44.1 kHz—192 kHz, 24-bit
• Clocking System
  • Clocking Technology: 4th Generation Acoustically Focused Clocking 64-Bit Jitter Management DDS
  • Word Clock/Loop-Sync Input: 1 x Input @ 75 Ohms 3Vpp on BNC
  • Word Clock/Loop-Sync Output: 2 x Output @ 75 Ohms 3Vpp on BNC
  • 10M Atomic Reference Input: 1 x Input @ 75 Ohms 1Vpp on BNC
  • Clock Stability:
  • Clock Aging: < 1 ppm per year
  • Clock Calibration:
  • Supported sample rates: 44.1 kHz—192 kHz, 24-bit
• Display Screens
  • Display Count: 2
  • Display Type: IPS
  • Resolution: 320x240
  • Dimensions: 1.8”
• Other
  • Operational Temperature: 0-50°C/32-122°F
  • Electrical Specs: 40 Watts
  • Weight: 3.4 kg/ 7.49 lbs
  • Dimensions: W482.6, D279, H44
• Mac:
  • Apple Mac 2012 or newer with Thunderbolt™ port
  • Minimum: macOS 10.12 Sierra. Recommended: macOS 11.02 Big Sur
  • Available storage space (Minimum 4 GB)
  • Memory (RAM): 4 GB minimum (8 GB or more recommended)
• Windows:
  • PC computer with certified Thunderbolt™ connectivity
  • Windows 10 (64-bit) with latest Microsoft Updates
  • Available storage space (Minimum 4 GB)
  • Memory (RAM): 4 GB minimum (8 GB or more recommended)
  • CPU: Intel Core i3™ or AMD FX (Higher recommended)
