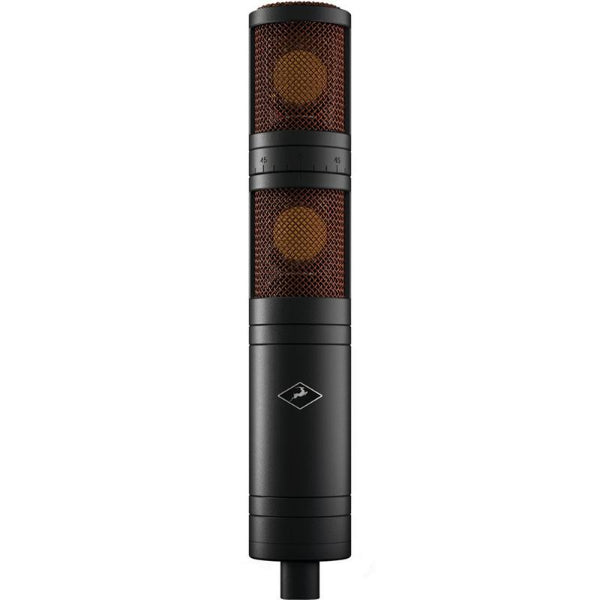

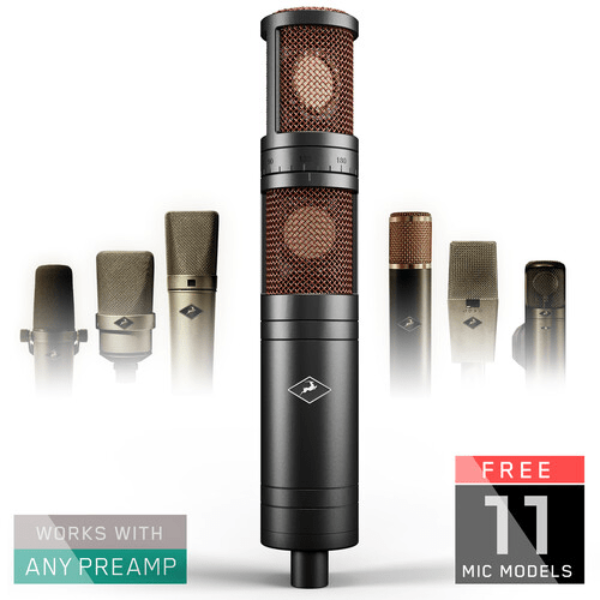

Discover the ultimate in vintage microphone emulation with the Antelope Audio Edge Quadro. This stereo microphone features two large dual-membrane capsules and a rotating head, allowing for versatile stereo and 360° recording capabilities.

Powered by Antelope Audio's cutting-edge modeling technology, the Edge Quadro offers precise emulation of the world's most iconic vintage microphones. Its dual capsules, each with 6-micron gold-sputtered dual-membranes, ensure exceptional clarity and fidelity without phase-related issues.

Achieve professional stereo techniques like M/S, X/Y, Blumlein, and immersive 3D sound with four independent channels for individual processing and polar pattern selection for each head. The Edge Quadro seamlessly integrates with optimized mic preamp-equipped interfaces, providing access to an extensive collection of legendary mic emulations.

Experience the classic feel and ease of use of the Antelope Audio Edge Quadro, where innovation meets studio-quality performance for immersive recording experiences.

Includes

• Breakout cable: Two 16.4′ (5 meters) 5-pin female XLR to dual 3-pin male XLR (high grade oxygen-free copper Y-cable)
• Mount: Custom luxury shock absorber type
• Case: Custom handmade wooden case
• Legendary Emulators: BERLIN 47 FT, BERLIN 49T, BERLIN 57, BERLIN 87, BERLIN 67, BERLIN M103, VIENNA 12, VIENNA 414, TOKYO 800T, OXFORD 4038, and SACRAMENTO 121R

Features

• One-of-a-kind quadrosonic modeling microphone
• Rotatable head with large double-membrane condenser capsules
• Audio signal split into 4 independent XLR output channels optimum control and re-micing
• Swichable Patterns: Cardioid, Figure-8, and Omnidirectional
• Individual mic emulation and polar pattern slelection for each head
• Infinate top head rotaion for maximum flexibility.
• Ultra-low reflection, full symmetrical top and bottom heads
• Extensive library of vintage mic emulations

Specifications

• Microphone type: Quadrosonic condenser microphone
• Diaphragms: Two large condenser capsules with double-sided 6u-gold sputtered membranes. Top head is fully rotatable.
• Diaphragm diameter: 34mm
• Polar pattern:
• Multi-pattern (cardioid, figure-8, omnidirectional, Blumlein, M/S, X/Y)
• XY-stereo – set both capsules to Cardioid, offset 90°
• Mid-side stereo – set the top capsule to Cardioid, and the bottom capsule to figure-8
• Blumlein – Set both capsules to Figure-8, offset 90°
• Self-noise: 19dB(A)
• SNR: 75dB(A)
• Frequency response: 20HZ ~ 20kHZ
• Sensitivity: -35dB | 18mV/Pa (-1 to +3dB)
• THD+N: -116dB
• Output impedance: 50 Ohms @ 1kHz
• Power requirements: 48V DC phantom power
• Output connector: 5-pin male XLR
• Dimensions: 11,9″ x 2,1″ (303mm x 53mm)
• Weight: 1.697 lbs (770 grams)
• System Requirements:
  • USB 2.0 equipped Mac or PC
  • Core 2 Duo minimum, Core i3/i5/i7/Xeon recommended
  • 4 GB RAM minimum, 8 GB RAM recommended
• Operating system:
  • OS X 10.11 (El Capitan) or greater
  • Windows 10
