The Powerhouse Behind Award-Winning Sound

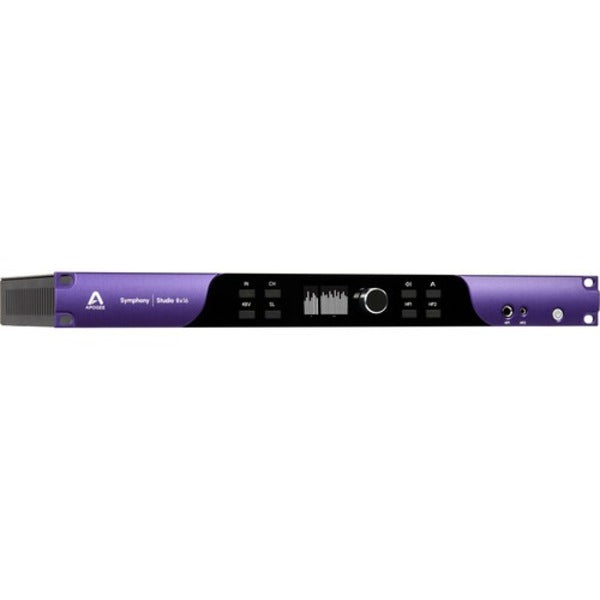

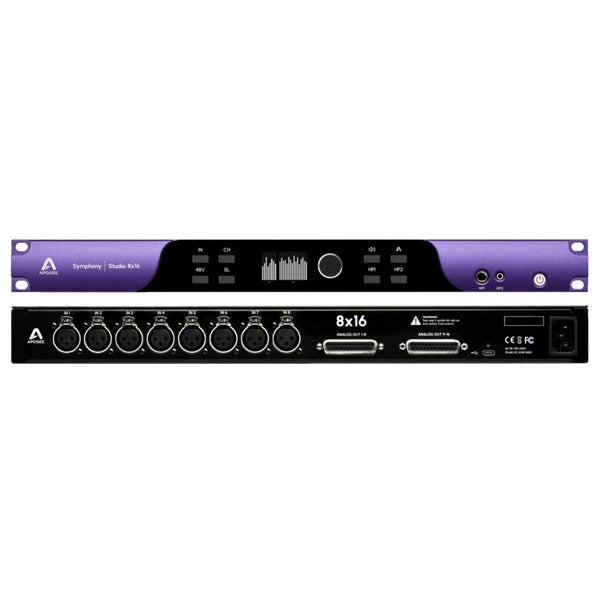

When you're working in high-pressure studio environments, you don't have time for compromises. The Apogee Symphony Studio 8x16 is engineered for producers, engineers, and audio professionals who need crystal-clear conversion, reliable routing, and pro-level flexibility. Whether you’re mixing in Dolby Atmos 9.1.6, tracking a live ensemble, or building out a post-production workflow, this interface delivers the quality and control you rely on.

You’re not just buying specs—you’re investing in performance, speed, and sound that earns trust in any room.

Why It’s Built for Your Workflow

• 8 Mic/Line Inputs
  Transparent preamps with up to 75dB of gain, perfect for dynamic mics, ribbons, and everything in between.

• 16 Line-Level Outputs
  Ideal for routing to outboard gear, summing mixers, or immersive multi-speaker monitoring setups.

• Real-Time Input DSP
  Built-in channel strip with EQ, compression, and saturation for latency-free tracking and creative shaping.

• Output DSP Tools
  Room EQ, delay, and bass management to calibrate your monitors and control your environment with precision.

• Immersive Audio Ready
  Native support for formats like Dolby Atmos 9.1.6, Auro-3D, and Sony 360 Reality Audio.

• Legendary Apogee Conversion
  24-bit/192kHz AD/DA ensures your recordings and mixes retain every nuance, at every stage.

• USB-C Integration
  Fast, reliable connectivity for macOS and Windows, with full DAW compatibility.

• Optional Apogee Control Remote
  Hardware controller for seamless, tactile workflow customization.

Technical Specifications

• Analog Inputs: 8 x XLR-1/4" combo jacks (mic/line)

• Analog Outputs: 16 x line-level outputs via 2 x DB25 connectors

• Mic Preamp Gain: Up to 75dB

• Line Output Level: +4dBu / -10dBV (switchable)

• Sample Rate: Up to 192kHz

• Bit Depth: 24-bit

• Headphone Outputs: 2 x 1/4" TRS, independent, 0-ohm

• USB: USB-C, class compliant

• Power Requirements: AC power cable included

Dimensions and Weight

• Chassis: 19-inch rack-mountable (1U)

• Package Dimensions: 22.875 x 17.75 x 9.25 inches (58.1 x 45.1 x 23.5 cm)

• Weight: Approximately 19.07 lbs (8.65 kg)

What’s in the Box

• Apogee Symphony Studio 8x16 Interface

• AC Power Cable

• USB-C Cable

• Warranty Booklet

• Getting Started Guide

Compatibility

• Operating Systems: macOS Ventura (13.6.8) or later, Windows 10 or later

• DAW Integration: Works with Logic Pro, Pro Tools, Ableton Live, and all major DAWs

Best For

• Professional Recording Studios – Multi-mic sessions, hardware routing, and mix precision

• Immersive Audio Engineers – Fully optimized for spatial formats like Dolby Atmos

• Mixing & Mastering Engineers – High-resolution conversion and DSP accuracy

• Broadcast & Post-Production – Trusted performance for mission-critical sessions
