Transparent Monitoring. Total Control.

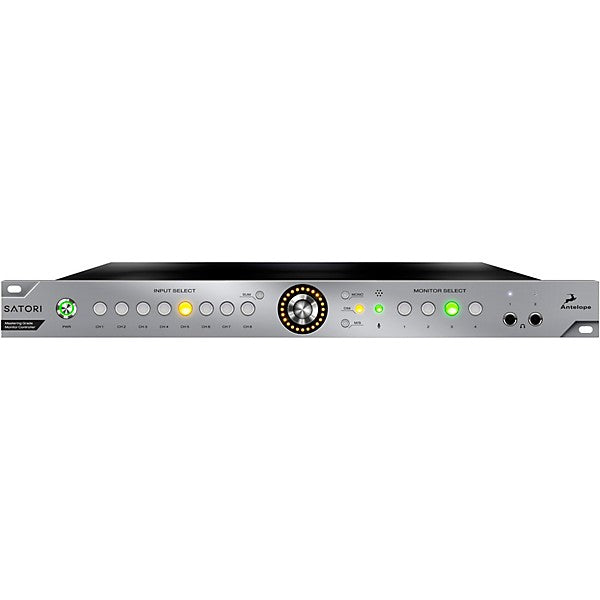

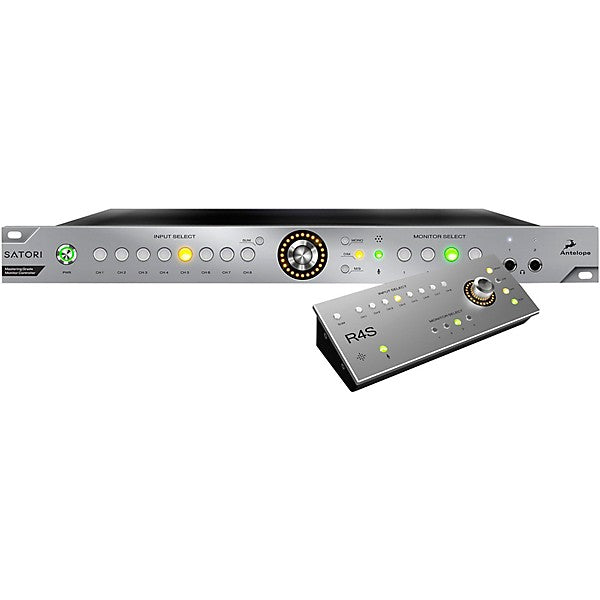

In a professional studio, your monitor path is everything. The Antelope Audio Satori + R4S gives engineers, producers, and mastering professionals precise control over their listening environment—without compromising the signal path. Whether you're switching between multiple speakers, managing artist headphone mixes, or referencing final masters, Satori ensures mastering-grade transparency with the flexibility your workflow demands.

Its 8-channel analog summing mixer draws from classic console design to add depth and dimension to your digital productions. And with the included R4S remote and mobile app control, you get instant access to all major functions—without leaving your sweet spot.

Key Features

• Mastering-Grade Transparency
  Optimized PCB layout and relay-based volume control ensure pristine signal fidelity.

• Analog Summing That Adds Character
  Built-in 8-channel mixer inspired by vintage console circuitry for added warmth and dimension.

• Flexible I/O for Any Setup
  8 stereo inputs and 4 stereo monitor outputs via XLR, TRS, and D-Sub—plus subwoofer and summed outs.

• Four Independent Headphone Amps
  Personalized, high-powered headphone mixes for producers, vocalists, and collaborators.

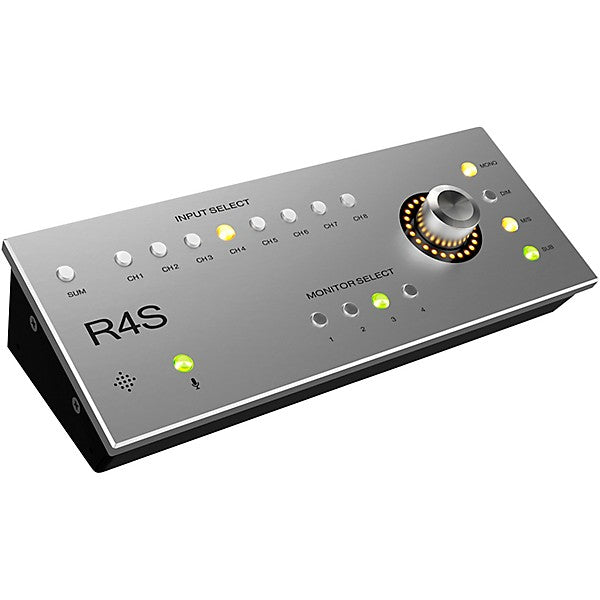

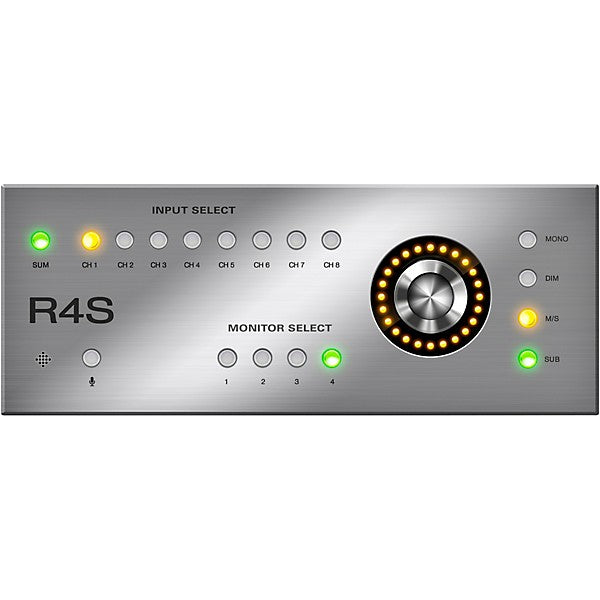

• Intuitive Remote Control with R4S
  Includes the R4S desktop remote for immediate hands-on control.

• Wireless Control via Mobile App
  Manage monitoring, routing, volume, and more from iOS or Android devices.

• Smart Attenuation
  Antelope’s relay-based volume control delivers accurate level changes with zero sonic compromise.

Antelope Audio Satori Specifications

Analog Inputs

• 4 x Stereo Line Inputs (1 XLR, 3 TRS)

• 4 x Stereo Line Inputs on D-Sub 25

• 1 x Talkback Mic Input (TRS)

Analog Outputs

• 4 x Stereo Monitor Outputs (1 XLR, 3 TRS)

• 4 x Stereo Outputs on D-Sub 25

• 1 x Stereo Sum Output (TRS)

• 1 x Subwoofer (LFE) Output (TRS)

• 4 x Headphone Outputs (2 front, 2 rear TRS)

USB Control

• USB 2.0 (Type B) for desktop software integration

Performance

• Dynamic Range: 132 dB

• THD + N: 127 dB

Power & Build

• Power Supply: Universal 95–245 V

• Power Consumption: 25W Max

• Weight: ~2kg (4.4 lbs)

• Dimensions (W x H x D): 483 mm x 44 mm x 220 mm (19" x 1U x 8.66")

What’s in the Box

• Antelope Satori Monitoring Controller

• R4S Remote Control

• Power Cable

• USB Cable

• Quick Start Guide

• Warranty Info

Ideal For

• Recording studios needing precise monitor control and artist cue mixes

• Mastering engineers requiring transparent monitoring with analog summing options

• Mix engineers juggling multiple outputs and reference chains

• Producers seeking hardware-level control over their monitoring workflow
