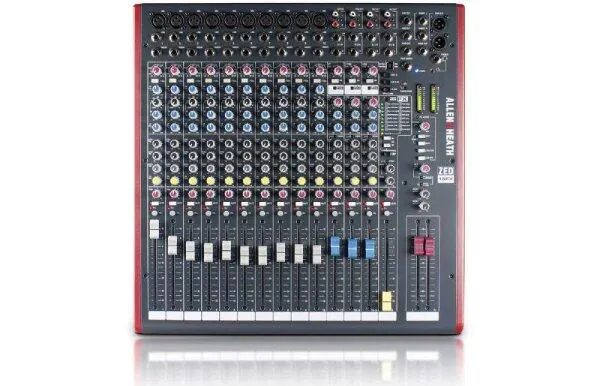

allen and heath zed16fx top view

Allen & Heath ZED-16FX Analog Mixer with USB

Save $300.00
$1,299.00
$999.00
Availability: Translation missing: en.general.icons.icon_check_circle icon 9 in stock, ready to be shipped

Notify me when back in stock

📞 Call Gavin: 844-873-2323
The Signal Chain Certainty System™
🔍
Personal Rig-Check $147 FREE
We review your mic, OS, and signal chain before your gear ships — and confirm everything works together.
📐
Studio Blueprint $197 FREE
Your personalized setup guide — exact connections, gain settings, and driver steps for your specific configuration.
🗺️
Upgrade Path Roadmap $97 FREE
What to add next and in what order — so you never overbuy or back yourself into a dead end.
🛡️
90-Day Compatibility Guarantee Exclusive
Every recommendation we make is personally verified. If anything doesn't perform as confirmed within 90 days, including driver conflicts, gain issues, or compatibility problems, contact us directly. We fix it. No runaround, no forums. A real person responds.
Total included support value:
$441 Included Free With Your Purchase
Get My Personalized Studio Blueprint →
Shipping Icon
Free Shipping
All US orders • 3–5 business days
Price match icon
Price Match Guarantee
Found it cheaper? We'll match it.
Why Shop Icon
Authorized Retailer
Expert support: 844-873-2323
Secure Checkout Icon
Secure Checkout
Visa, Mastercard, Amex, PayPal & more
Money Back Icon
30-Day Money-Back Guarantee
Risk-free returns, no questions asked
Description

Allen & Heath ZED-16FX 16-Channel Analog Mixer with FX and USB

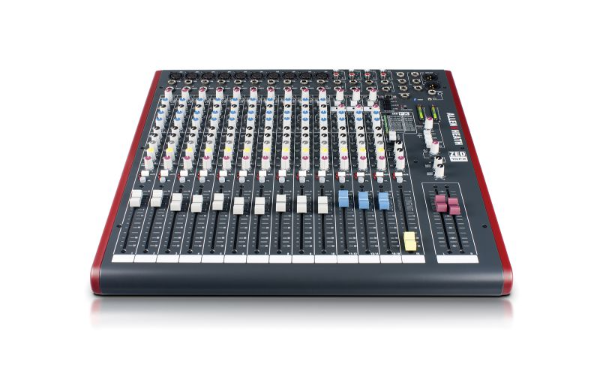

Allen & Heath ZED-16FX front panel showing 100mm ALPS faders and DuoPre preamp gain knobs

Built to Be Thrown in a Van and Trusted on Stage

Picture this: load-in is in 45 minutes, the venue is smaller than expected, and your drummer knocked over a monitor on the way in. You need one that lets you put your hands on the faders and work, not a mixer with a learning curve. That's exactly what the ZED-16FX is for.

Allen & Heath built this mixer to touring-grade standards with a steel chassis that handles the daily punishment of gigging life. The 100mm ALPS faders have a smooth, reassuring action, not the scratchy, vague feel of cheaper boards. Ten mono channels handle your mic inputs; three stereo channels take care of keys, backing tracks, or any stereo source you need to fold in. Everything is laid out logically, so even a deputizing engineer can navigate it mid-show without stopping to think.

 ZED-16FX MusiQ 3-band EQ section with swept mid frequency controls on mono channels

DuoPre Preamps and MusiQ EQ That Actually Sound Like Something

The DuoPre preamp design uses two gain stages: most of the amplification happens in the first stage, which keeps the noise floor low and gives you clean, consistent headroom across the full 69dB gain range. That means a quiet ribbon mic or a low-output dynamic lands just as cleanly as a hot condenser. No reaching for the top of the gain knob and hoping for the best.

The 3-band MusiQ EQ is where the ZED's character comes through. The swept mid lets you move through the frequency range and find exactly where a vocal or guitar is sitting before you cut or boost. MusiQ automatically tightens the Q as you apply larger corrections, so broad tonal shaping stays musical and narrow surgical cuts don't smear into adjacent frequencies. It works the way a good engineer's ears do. Intuitively.

 ZED-16FX built-in FX section with tap tempo, up/down buttons, and 9 LED display

16 Onboard Effects, Tap Tempo, Zero Extra Gear to Carry

The onboard FX engine covers reverbs, delays, and modulation. Sixteen types in total, crafted by Allen & Heath's own DSP team and not lifted from a generic library. For smaller rigs, this is one less rack unit, one less power strip tap, and one less thing to troubleshoot before doors open.

Control is three buttons and nine LEDs. Hold TAP and press up or down to adjust parameters directly: dial in plate decay, set chorus depth, or tap in a delay time that locks to the tempo of the set. For USB, the ZED-16FX sends stereo audio to Mac or Windows computers with no driver installation. Select your routing on the board and your audio device on the computer and it's done. Four send options let you choose between post-fade main mix, pre-fade, or aux buses so the capture matches the situation.

Highlights

  • 10 mono mic/line channels with XLR and 1/4" TRS inputs, plus 3 dual stereo channels
  • DuoPre two-stage mic preamps with 69dB gain range and low-noise first-stage design
  • 3-band MusiQ EQ with swept mid frequency on every mono channel
  • 100Hz high-pass filter on all mono channels
  • 16 built-in time-delay effects including reverbs, delays, and modulation with tap tempo
  • 100mm ALPS faders on all channels and master
  • USB 2x2 audio to Mac/PC with no driver installation required; four configurable send options
  • 10 channel inserts via 1/4" TRS for outboard processing
  • 2 pre-fade and 1 post-fade aux sends plus 1 FX send
  • Global 48V phantom power for condenser microphones
  • Frequency response: +0.5/–1 dB, 20Hz to 20kHz (mic in to mix out, 30dB gain)
  • Nominal output: 0dBu, maximum output: +21dBu
  • Rackmountable with optional AH-ZED18-RK19 rack ear kit
  • Touring-grade steel chassis, 18.7 lbs.
  • Dimensions: 18.3" W x 18.3" D x 3.9" H

Allen & Heath ZED-16FX Specifications

Specification Details
Type Analog Mixer with FX and USB Audio
Channels 16-channel (10 mono, 3 stereo)
Mic Preamps DuoPre two-stage design, 69dB gain range
Phantom Power 48V, global switch
EQ 3-band MusiQ with swept mid frequency (mono channels)
High-Pass Filter 100Hz, on all mono channels
Faders 100mm ALPS (all channels and master)
Effects 16 types: reverbs, delays, modulation; tap tempo
USB Audio 2x2, stereo, 16-bit/48kHz, Type B connector; no driver required
USB Send Options Main Mix post-fade, Main Mix pre-fade, Aux 1-2, Aux 3-FX
Aux Sends 2x pre-fade, 1x post-fade, 1x FX post
Channel Inserts 10x 1/4" TRS (mono channels)
Inputs (Mic) 10x XLR
Inputs (Line) 10x 1/4" TRS, 8x 1/4" (4 stereo pairs)
Inputs (Other) 2x dual RCA stereo (2-track/CD)
Outputs (Main) 2x XLR (L/R), 1x 1/4" (mono)
Outputs (Other) 2x dual RCA (rec out, alt out)
Main Insert 2x 1/4" TRS (stereo main bus)
Headphones 1x 1/4", 1x 1/8"
Footswitch 1x 1/4" (FX mute)
Frequency Response +0.5/–1dB, 20Hz–20kHz (mic in, 30dB gain); +0.5/–1dB, 10Hz–30kHz (line in, 0dB gain)
Nominal Output Level 0dBu
Maximum Output Level +21dBu
Included Software Cakewalk SONAR X1 LE
Power Internal, IEC AC mains cable
Rackmount Option Optional AH-ZED18-RK19 rack ear kit (19")
Width 18.3"
Depth 18.3"
Height 3.9"
Weight 18.7 lbs.
Part Number AH-ZED16FX

What's in the Box

Included Items
ZED-16FX Mixer, IEC Mains Lead (Power Cable), Type A-B USB Cable, User Guide
