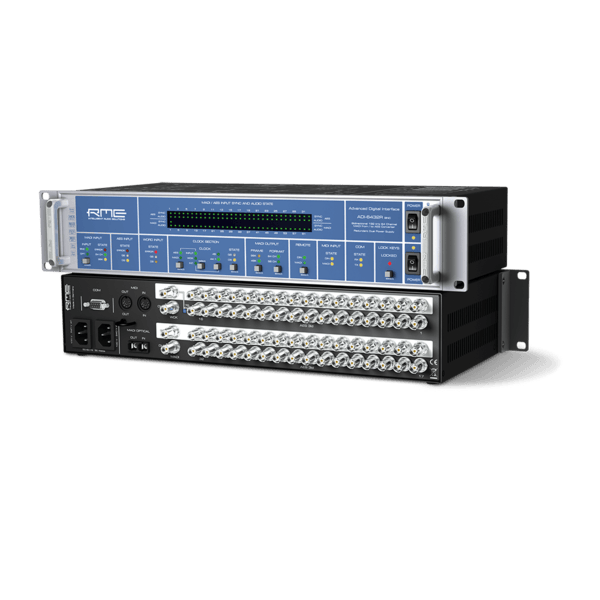

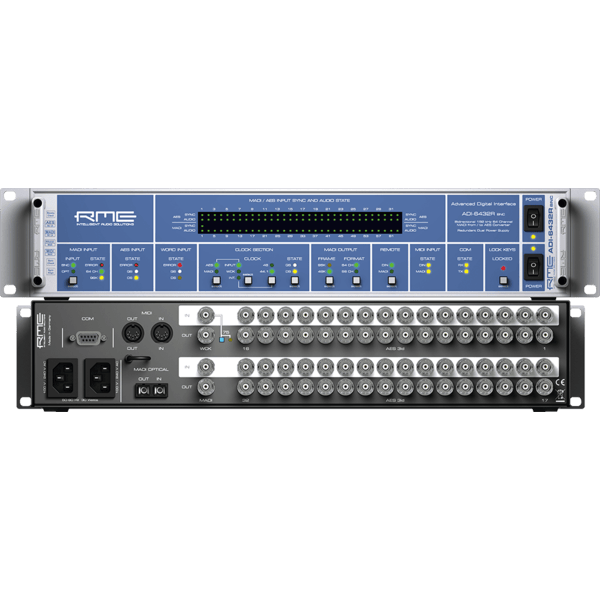

• RME ADI-6432R BNC 64-Channel front and rear
  • RME ADI-6432R BNC 64-Channel front and rear
1 2

RME

RME ADI-6432R BNC 64-Channel 192 kHz MADI/AES Format Converter (Single-Mode)

RME ADI-6432R BNC 64-Channel 192 kHz MADI/AES Format Converter (Single-Mode)

The RME ADI-6432R BNC converter is perfect for broadcasters and professionals seeking fail-safe operation and easy integration with BNC connectors and dual redundant power supplies. With 64 channels, AES-3id compatibility, and support for up to...

Type : Converters

Availability : In stock Out of stock

$6,199.00
$6,199.00
On Sale! Sold out
Shipping calculated at checkout.

Tags : Converters

Collections : Converters

Shipping & Returns

  • We deliver all US domestic orders within 6-10 business days!
  • Cancelations are completely free of charge
  • Returned Items must be unused and in original packaging
  • Most items can be returned within 30 days of delivery unless otherwise noted

No Sales Tax On Your Order

  • No sales Tax On Your Order Except GA*

Why Shop With Us

  • Authorized Retailer for KMC music, Antelope audio and RME
  • ZERO Sales Tax (for Georgia Residents)
  • Speak with an Expert Today at 470-823-8373
View full details

The RME ADI-6432R BNC converter is perfect for broadcasters and professionals seeking fail-safe operation and easy integration with BNC connectors and dual redundant power supplies. With 64 channels, AES-3id compatibility, and support for up to 192 kHz at 24 bits, this 2-height unit is a reliable choice for digital multicore and AES-3id front-end needs.

The ADI 6432 R BNC SINGLE is a single-port version of the ADI 6432 R, providing 64 channels of MADI-to-AES/EBU conversion with BNC connectivity. It features SteadyClock FS technology for low jitter and high audio fidelity, making it suitable for professional audio setups requiring high-quality format conversion

Features

  • RME's SteadyClock lets the ADI-6432R Converter use MADI without an additional word clock connection, and ensures efficient clock quality in every situation. Due to highly efficient jitter reduction, any clock signal - even AES and word - can be improved and refreshed, and subsequently be used as reference clock at the unit's outputs. It has ICC (Intelligent Clock Control).
  • The SyncCheck and AutoSync technology has been incorporated into the Intelligent Clock Control of the Hammerfall DSP system. HDSP is a digital I/O-system that is capable of measuring and displaying the frequency of all clock sources. Based on validity and current sample rate, the system decides which clock source should be used, fully automated and performed in hardware. With this, the HDSP system offers ease at handling the present clocks, despite having a lot of digital inputs, plus strong support when configuring the clock setup. It will retain the last valid sample frequency in case of a loss of the input signal.
  • 16 MIDI channels can be transferred invisibly across MADI, at the full count of 64 audio channels. The same applies to RS232. Be it 9600, 19200, or 115200 Baud, thanks to a 9-pin COM port, the ADI-6432R Converter can be used as an extender for serial cables, with no effect on the audio functionality.
  • Additionally, the device can be fully remote controlled and configured via MIDI, and all status displays can be queried through MIDI. Each ADI-6432R Converter can be given a separate ID, allowing separate remote controllability of various devices with only a single MIDI channel.
  • The ADI-6432R Converter is compatible with any MADI interface from other companies, like Sony, Merging, Lawo, Euphonix, Stagetec, Jünger, Audio Service, AMS, and others.
  • The unit also includes lots of typical RME features such as support up to 192 kHz with MADI and AES, status displays for MADI and AES, SteadyClock for maximum jitter reduction and clock regeneration, complete remote controllability via MIDI, transfer of MIDI data via MADI, transfer of RS232 data via MADI, and a redunidant power supply.
