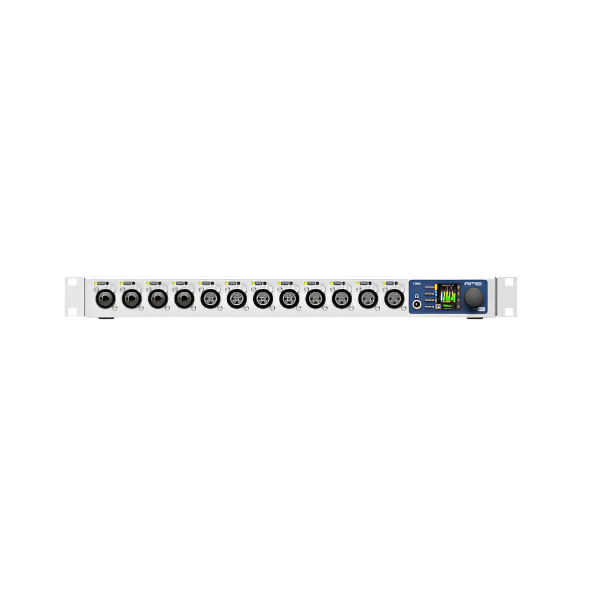

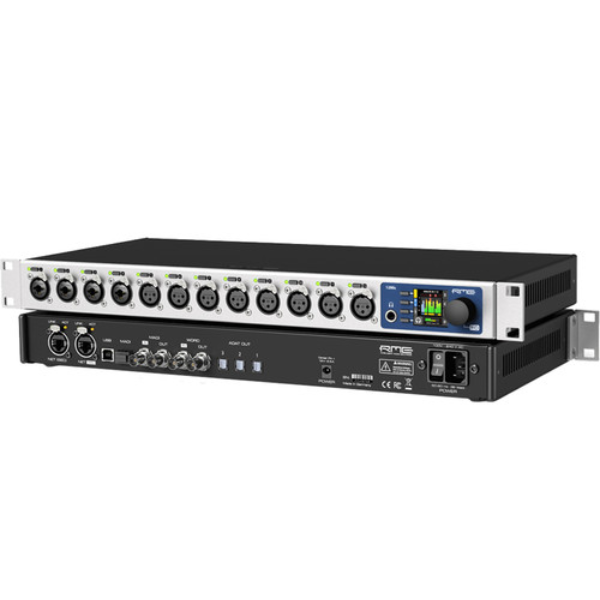

RME 12Mic – 12-Channel Network Controllable Microphone Preamp

The RME 12Mic is a professional-grade, 12-channel microphone preamplifier and audio interface built for today's most demanding audio environments. With pristine analog-to-digital conversion, advanced network control, and versatile connectivity, it’s the perfect solution for studio recording, live sound, broadcast, and remote production workflows.

Key Features:

• 12 transparent mic/line inputs – Each input offers up to 75 dB of gain without pads, providing ultra-clean amplification for mic, line, or instrument-level signals. The first four channels include combo XLR/TRS connectors with switchable impedance, ideal for direct instrument recording.

• High-performance AD conversion – Boasting a signal-to-noise ratio of over 120 dBA, the 12Mic ensures exceptional clarity and detail across all input channels.

• Advanced digital I/O – Includes coaxial MADI, optical MADI (via SFP module), and three ADAT outputs. This allows integration with a wide range of professional digital audio systems and interfaces.

• AVB/MILAN network compatibility – Dual Ethernet ports support full redundancy and ensure low-latency, guaranteed-bandwidth audio streaming across compliant AVB networks—no switch configuration required.

• SteadyClock FS – RME’s ultra-low-jitter clocking technology provides precise synchronization and pristine digital signal transmission.

• Redundant power and network design – Dual power inputs (AC and DC) and dual Ethernet ports ensure uninterrupted operation in mission-critical environments.

Remote Control & Routing:

The 12Mic offers full control via the front panel or wirelessly over any network via a web browser. Gain settings, phantom power, and signal routing can all be adjusted remotely. A powerful internal routing matrix allows you to patch any input to any output, including direct monitoring via the headphone output for fast troubleshooting and signal management.

Technical Specifications:

• Analog inputs: 4 x XLR/TRS combo (Hi-Z/mic/line), 8 x XLR (mic/line)

• Digital I/O: 1 x MADI coaxial, 1 x optical MADI via SFP, 3 x ADAT outputs

• Network: 2 x Gigabit Ethernet (AVB/MILAN)

• Clocking: Word Clock I/O (BNC), SteadyClock FS

• Headphone out: 1 x 1/4" TRS

• Frequency response: 3 Hz – 43.7 kHz (-1 dB)

• Dynamic range: >120 dBA

• THD+N: <0.00063%

• Dimensions: 1U rackmount (17.3" x 9.6" x 1.7")

• Weight: 6.2 lbs

Applications:

The RME 12Mic is perfectly suited for:

• Studio and location recording

• Live sound and touring

• Broadcast installations

• AVB/MADI-based facilities

• Remote and networked production

What’s in the box:

• RME 12Mic microphone and line-level network preamp

• Power cable

• User documentation

• Limited 2-year manufacturer warranty

With its combination of uncompromising audio quality, flexible I/O, and robust control features, the RME 12Mic is an essential tool for modern audio professionals looking to expand into networked, high-resolution recording systems.
