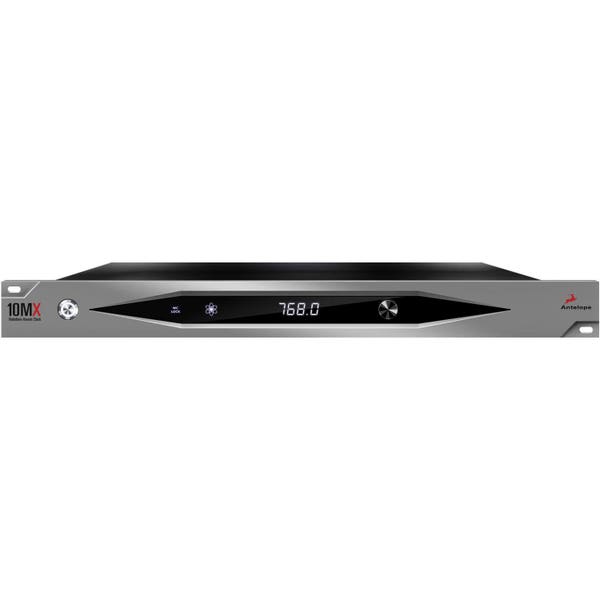

Experience unparalleled precision and reliability with the Antelope Audio 10MX Rubidium Reference Master Clock, designed to elevate your audio production to new heights. Engineered with a state-of-the-art Rubidium oscillator, the 10MX delivers an ultra-stable clock signal at up to 768 kHz, ensuring impeccable synchronization across your entire digital audio setup.

Perfect for professional studios and audiophile environments, the 10MX significantly reduces jitter to imperceptible levels, resulting in pristine audio clarity and definition. Its advanced features include multiple clocking outputs, allowing seamless integration with a wide range of digital audio devices, from converters to interfaces and beyond.

Achieve sonic perfection with the Antelope Audio 10MX, where every detail of your audio production is faithfully reproduced with precision timing and uncompromising accuracy. Whether you're recording, mixing, or mastering, the 10MX sets the standard for superior clocking technology in the audio industry.

Antelope Audio 10MX Features:

• The master clock beast: 4 Word Clock outputs allowing up to 768 kHz
• 64-bit acoustically focused clocking: Flawless clocking powered by Antelope Audio’s world-renowned jitter management algorithm
• Multiple atomic outputs: The 10MX’s multiple atomic outputs allow up to 10 devices to be simultaneously clocked
• Additional outputs: 2 x S/PDIF and 2 x AES/EBU master clocking outputs up to 192 kHz
• Maximum control: Intuitive Software Control Panel
• PC/MAC connection: PC/Mac connection via USB, allowing remote control and firmware upgrades

Antelope Audio 10MX Specifications:

• Phase Noise (SSB):
  • 1Hz =-70 dBc/Hz
  • 10Hz =-87 dBc/Hz
  • 100Hz =-114 dBc/Hz
  • 1kHz =-130 dBc/Hz
  • 10kHz =-140 dBc/Hz
• Short-Term Stability:
  • t=1s =3E-11
  • t=10s =1.6E-11
  • t=100s =8E-12
• Warm-Up Time: 8 – 10 minutes (depends on ambient temperature)
• Word Clock Input: 1 x Word Clock Input @ 75 Ohms 3Vppon BNC 44.1 – 384kHz
• Maximum shock withstanding:
  • Non-operating, flight case mounted: 100m/s2 (~10.2 g*), 11 msec half-sine pulse per IEC 60068-2-27:2008
  • Non-operating, in original packing: 300m/s2 (~30.6 g*), 5 msec half-sine pulse per IEC 60068-2-27:2008
  • * g – gravitational acceleration

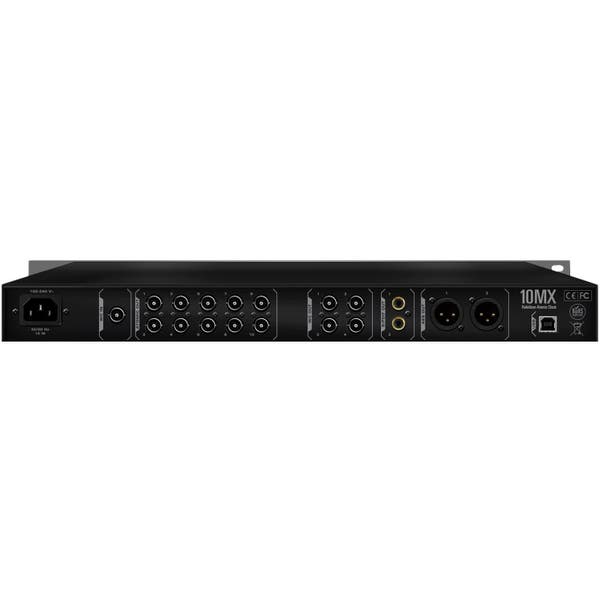

• Outputs:
  • Word Clock: 4 x BNC
  • AES/EBU: 2 x XLR
  • S/PDIF: 2 x RCA
• Word Clock Outputs: 4 x Word Clock Outputs @ 75 Ohms 3Vpp on BNC 44.1 – 768 kHz square wave signal
• USB I/O: USB 2.0 Hi-Speed; Data stream up to 480Mbits/384kHz, Type B
• Clocking System:
  • 4th Generation Acoustically Focused Clocking
  • 64-bit DDS
  • Oven Controlled Crystal Oscillator
• Clock Stability:
• Atomic Reference Type: Rubidium Ultra-Stable Resonance-Controlled Master Oscillator
• Frequency: 10 MHz
• Frequency Accuracy: Better than ±5E-11 @25C (±0.05PPB)
• Aging:
  • Daily* ±2.5E-11
  • Monthly* ±1E-10
  • Yearly ±1E-9
  • (*After 1 day & 1 month of operation respectively)
• Atomic Clock Outputs: 10 x BNC Sinusoidal, 10MHz, 75Ohm, 1Vpp typical (unload)
• Sample Rates (kHz): 32, 44.1, 48, 88.2, 96, 176.4,192, 352.8, 384, 768
• Word Clock Specs: TTL Level, 75 Ohm Output Impedance
• USB: USB 2.0 Full-Speed, Type B, only for control
• Operating Temperature: 32°-122°F (0°-50°C)
• Weight: 6.17 lb (2.8 kg)
• Dimensions (WxDxH): 19" x 9" x 1.73" (482.6 x 228 x 44mm)
• Power Supply: AC
• Power Consumption: 15 W
• Humidity: 30 – 80% RH non-condensing
• Power Supply Input: 100 – 240 V~
